System information

VELFAC Classic is designed to provide high performance and a traditional window design. Modern requirements for energy, noise reduction, security and weather resisting performance are combined with traditional detailing.

VELFAC Classic wood is a pine wood window with an external aluminium glazing bead colour matched to the sash. It can be used in locations where conservation planning laws will not allow UPVC or aluminium frames, or for projects with high sustainability credentials.

The range consists of windows and patio doors in wood and is rich in traditional details such as external slim-line barrel hinges for sidehung openers, slim and profiled glazing bars, and moulded internal wood frames.

Windows can be designed to match styles of traditional or older building aesthetics e.g. cottage, farmhouse, mansion etc., and are suitable for use in both new-build and renovation projects.

Technical specifications

Outward opening wood windows and casement doors.
Outward and inward opening wood patio doors.
Outward and inward opening wood entrance doors (see under Entrance doors).
Uw value: 0.8 W/m²K.
Glazing options: 32mm double glazed or 48mm triple glazed.
A comprehensive 5 year warranty.

Window design

The design consists of the combination of sash profile and glazing bars.

Frame/sash profile
In VELFAC Classic wood/aluminum, the fixed and opening functions look different. The fixed consist of a slim frame profile only, while the opening functions consist of a wider frame/sash profile.
If you want the same looks throughout the project, a fixed casement can be supplied in stead of the fixed light.
You can also choose between 3-layer and 2-layer glazing.

Mullions and transoms
The frame can be divided with mullions and transoms. This gives the option of different opening functions in the same element.

Glazing bars
Each sash can be divided with glazing bars to achieve a specific design expression. VELFAC Classic wood/aluminium is available with horizontal, vertical, cross and T-shaped glazing bars.

Here you can see a selection of windows in VELFAC Classic wood/aluminum and find inspiration for your project.

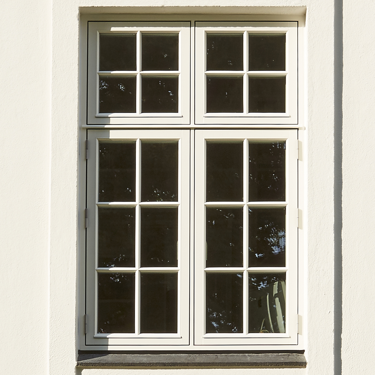

Dannebrog style with 25mm cross glazing bars

Jamb, Opening sash, TGU, VELFAC Classic wood

Frame/sash profiles

Mullions and transoms

Fixed mullion in configuration with 4 sashes

See pictures of how mullions and transoms are coupled

Glazing bar options

Colours, materials and surface finish

VELFAC Classic wood windows and casement doors are made of hard-wearing materials that require a minimum of maintenance.

We are careful when selecting suppliers and when specifying materials. We put great effort into processing and surface treatment. These are all cornerstones of a quality product.

For frames, mullions and transoms we use FSC®-certified pine.

The surface treatment of wood is described below.

Colours and surface finishes

Pine wood for window and door production

Material description and surface treatments for wood

Shaped and curved elements

VELFAC also manufactures windows and doors with oblique angles and curved heads, and completely round windows.

Some shapes can be produced with opening sashes - others only as fixed lights.

For shaped elements there are a few structural rules that must be observed - contact VELFAC for more information.

23mm glazing bars are not available in shaped element sloping more than 45°.

Examples of curved and shaped windows

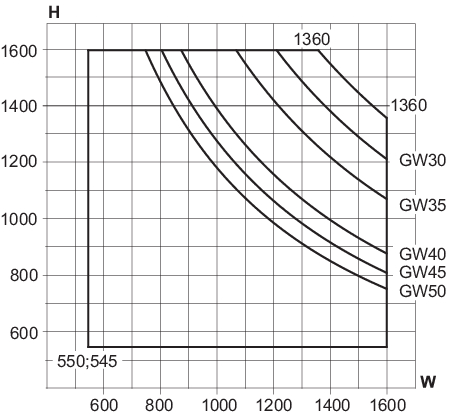

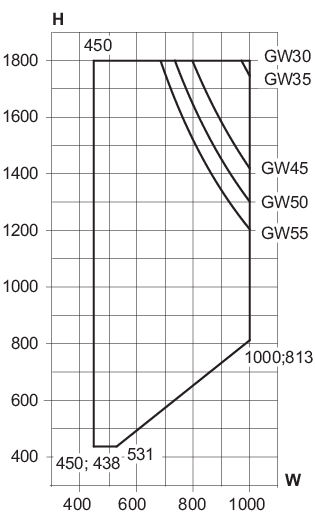

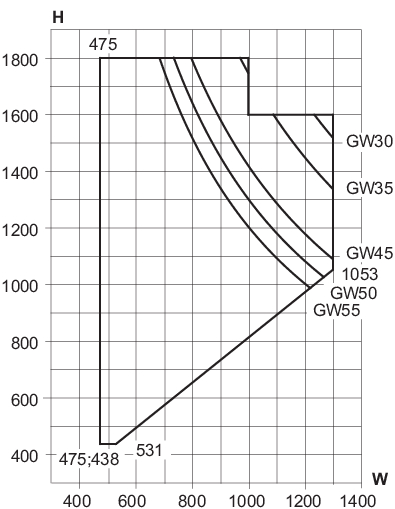

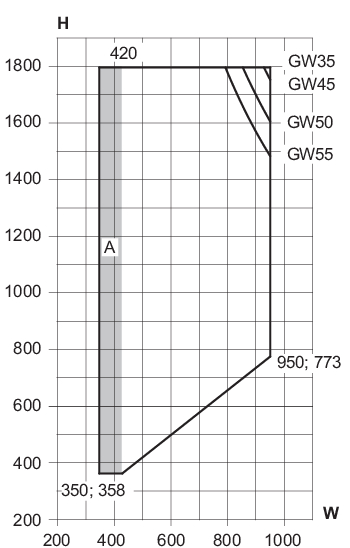

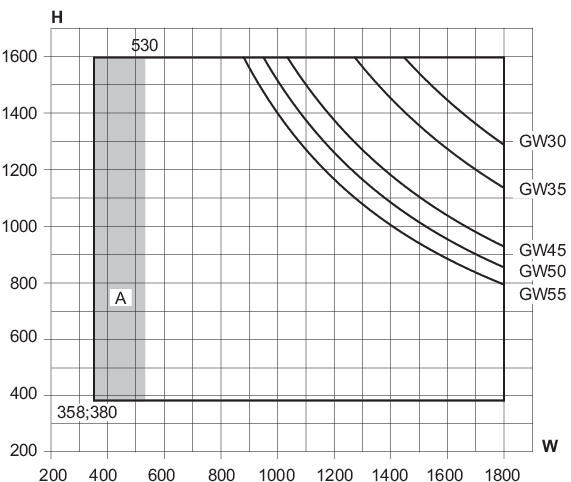

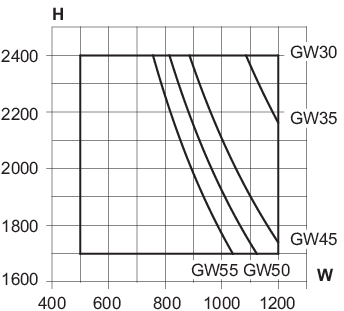

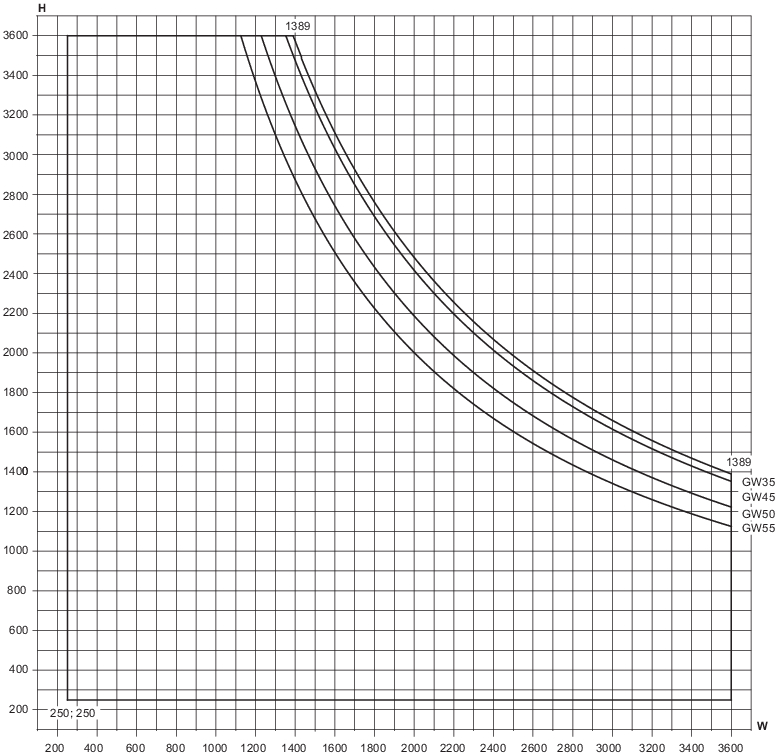

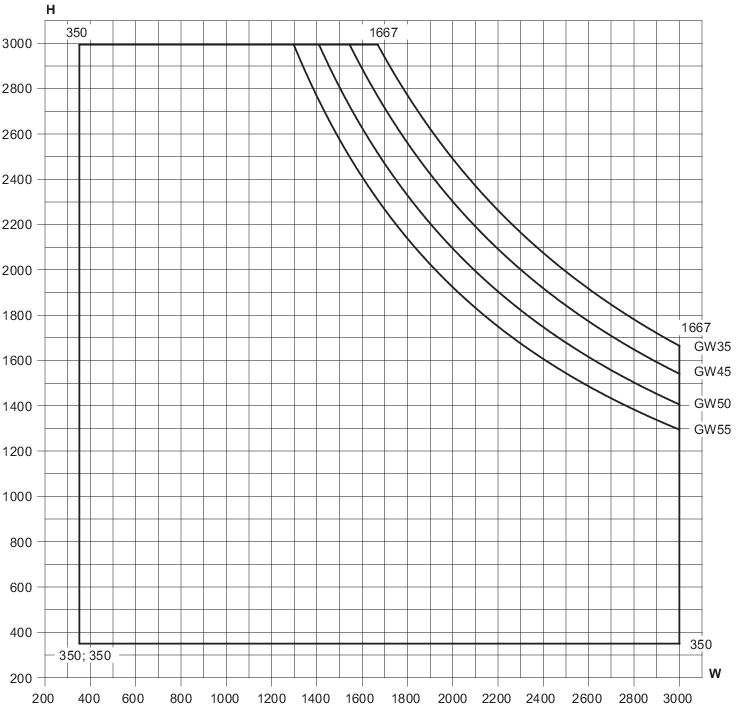

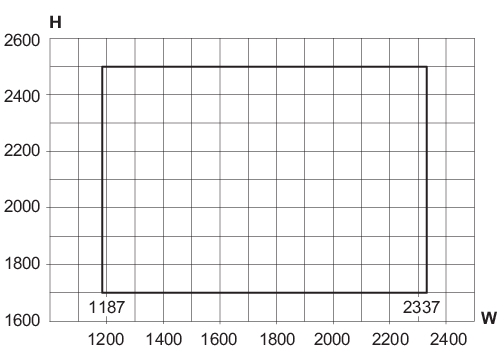

Min./max. sizes and calculation of free opening rules, all opening functions

Here you find the min./max. sizes for all opening functions in VELFAC Classic windows and patio doors.

To calculate the free opening, please use the formulas below.
