Drawings

System drawings

Here you will find VELFAC Classic wood/alu system drawings for windows and patio doors.

The drawings can be downloaded as DWG or PDF files and are available free of charge when used in specifying VELFAC windows.
Frames, mullions and panels, VELFAC Classic wood/alu windows and casement doors
Windows, casement and patio doors
Grooves for VELFAC Ribo
Grooves, rebates and packers

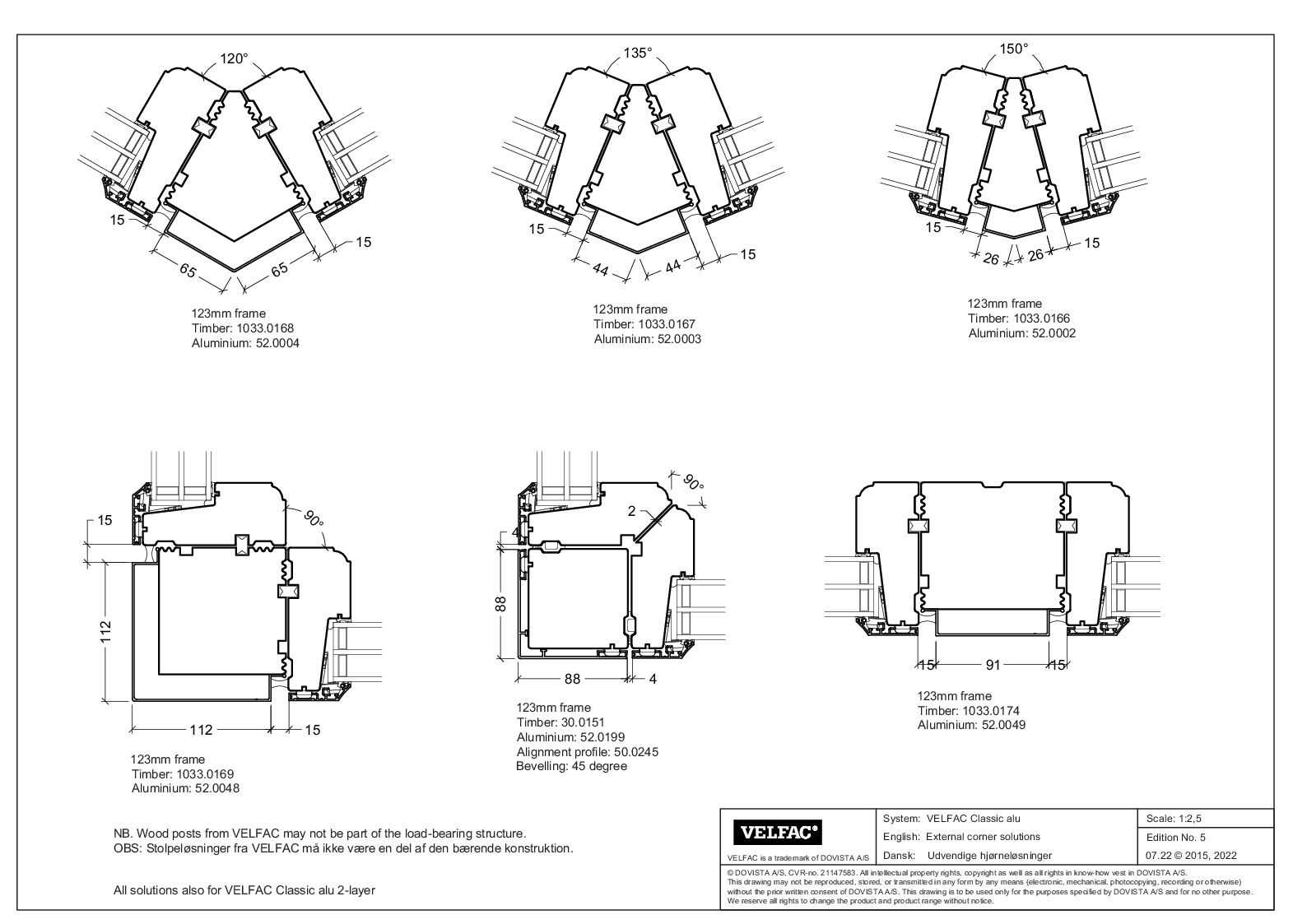

Corner solutions for VELFAC Classic wood/alu
Corner solutions
Fixed mullion in configuration with 4 sashes
See pictures of how mullions and transoms are coupled

Coupling details

System details can be downloaded as DWG or PDF files.

VELFAC system details are available free of charge when used in specifying VELFAC windows.
Coupling details, VELFAC Classic wood/alu with VELFAC Classic wood/alu
VELFAC Classic wood/alu windows - VELFAC Classic wood/alu windows

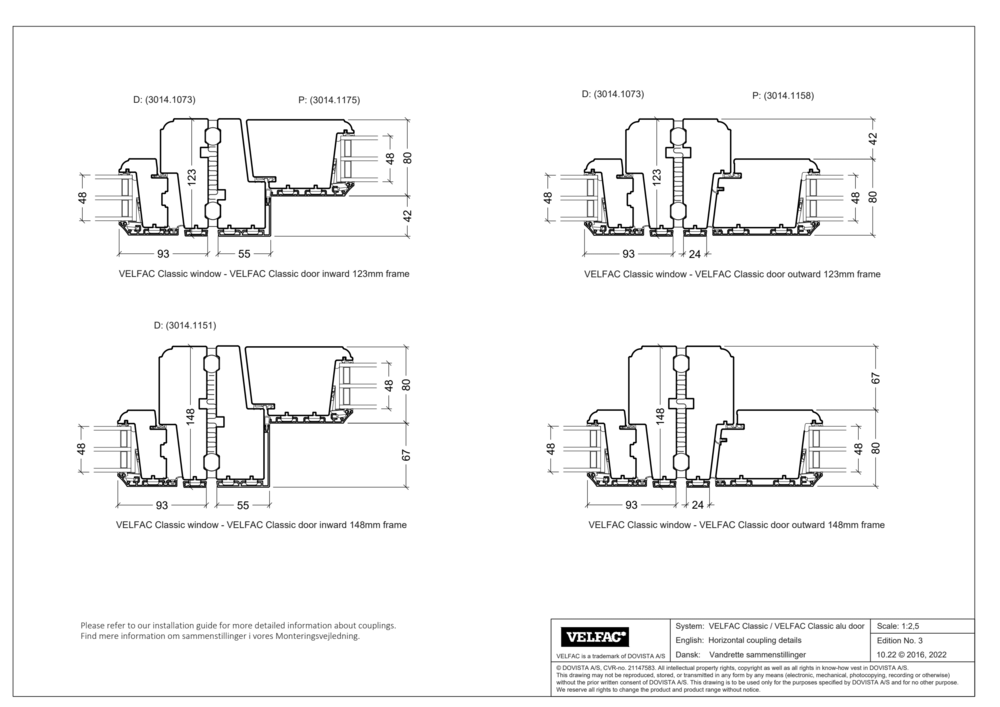

Coupling details, VELFAC Classic wood/alu - VELFAC Classic wood/alu entrance doors
VELFAC Classic wood/alu windows - VELFAC Classic wood/alu entrance doors
Coupling details, VELFAC Classic - VELFAC aluminium doors
VELFAC Classic windows - VELFAC Aluminium entrance doors

VELFAC Classic windows, Commercial structural interface drawings

Below you will find structural interface drawings for Commercial projects.

Please follow the links below to the drawings as DWG and PDF.

The drawings are structured after outer skin.
The structural interface drawings feature VELFAC Ribo wood/aluminium, but VELFAC Classic wood/aluminium and VELFAC Classic wood are installed according to the same methods.
Timber Cladding - Block Masonry - Head
Timber as outer skin of structure
Brick - Block Masonry - Head
Brick as outer skin of structure
Insulated Render - Block Masonry - Head
Insulated Render as outer skin of structure
Rendered Block - Block Masonry - Head
Rendered Block as outer skin of structure

VELFAC Classic windows, Structural Interface drawings, Housebuilder projects

Below you will find structural interface drawings for Housebuilding projects.

Please follow the links below to the drawings as DWG and PDF.

The drawings are structured after outer skin.
The structural interface drawings feature VELFAC Ribo wood/aluminium, but VELFAC Classic wood/aluminium and VELFAC Classic wood are installed according to the same methods.
Timber Cladding - Block Masonry - Head
Timber as outer skin of structure
Brick - Block Masonry - Head
Brick as outer skin of structure
Insulated Render - Block Masonry - Head
Insulated Render as outer skin of structure
Rendered Block - Block Masonry - Head
Rendered Block as outer skin of structure
