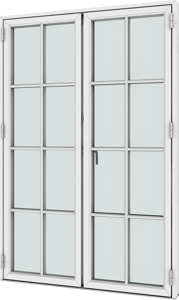

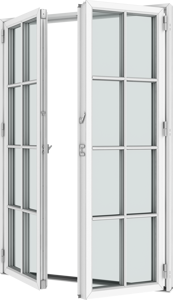

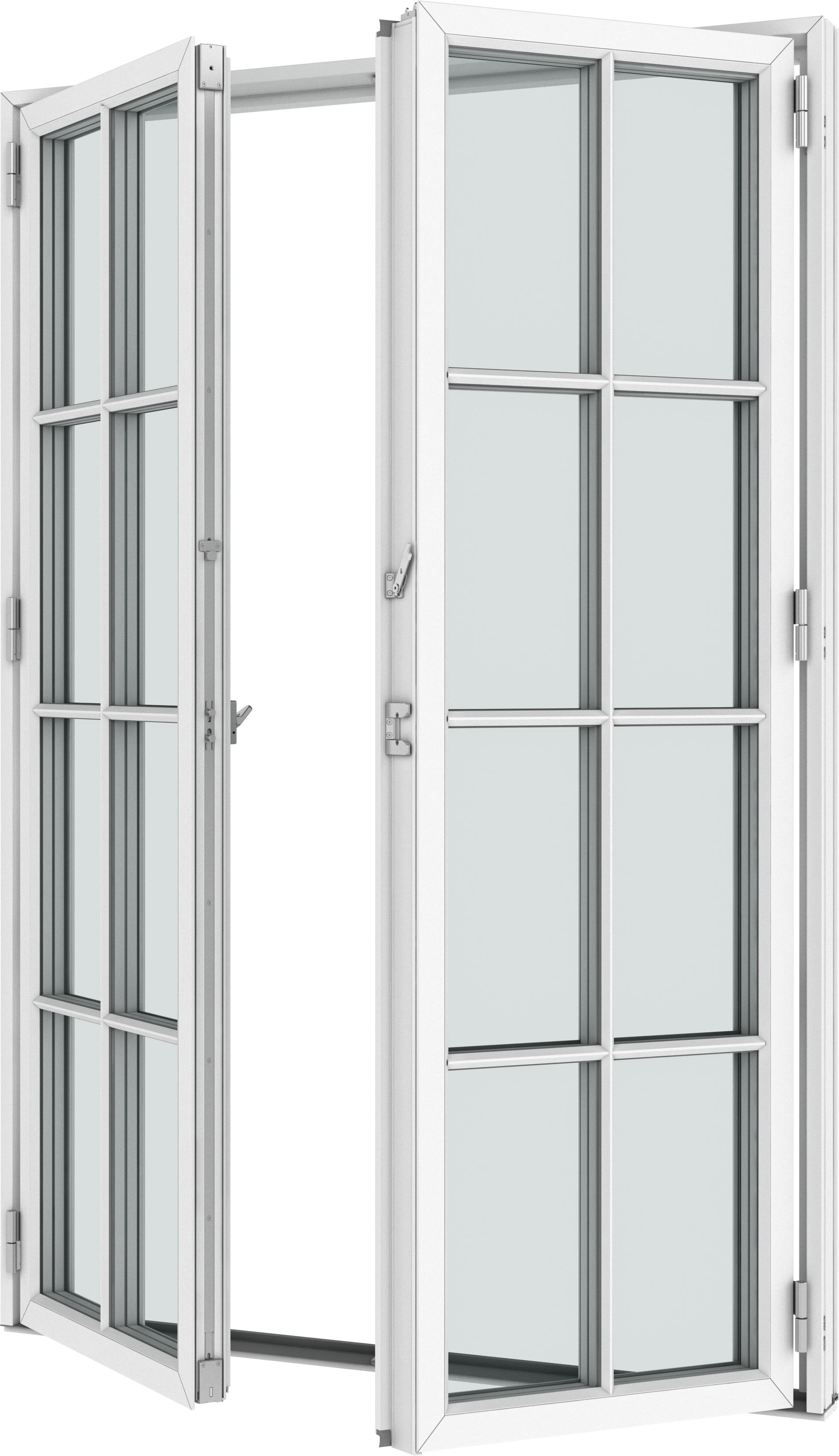

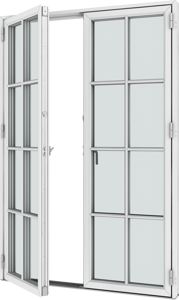

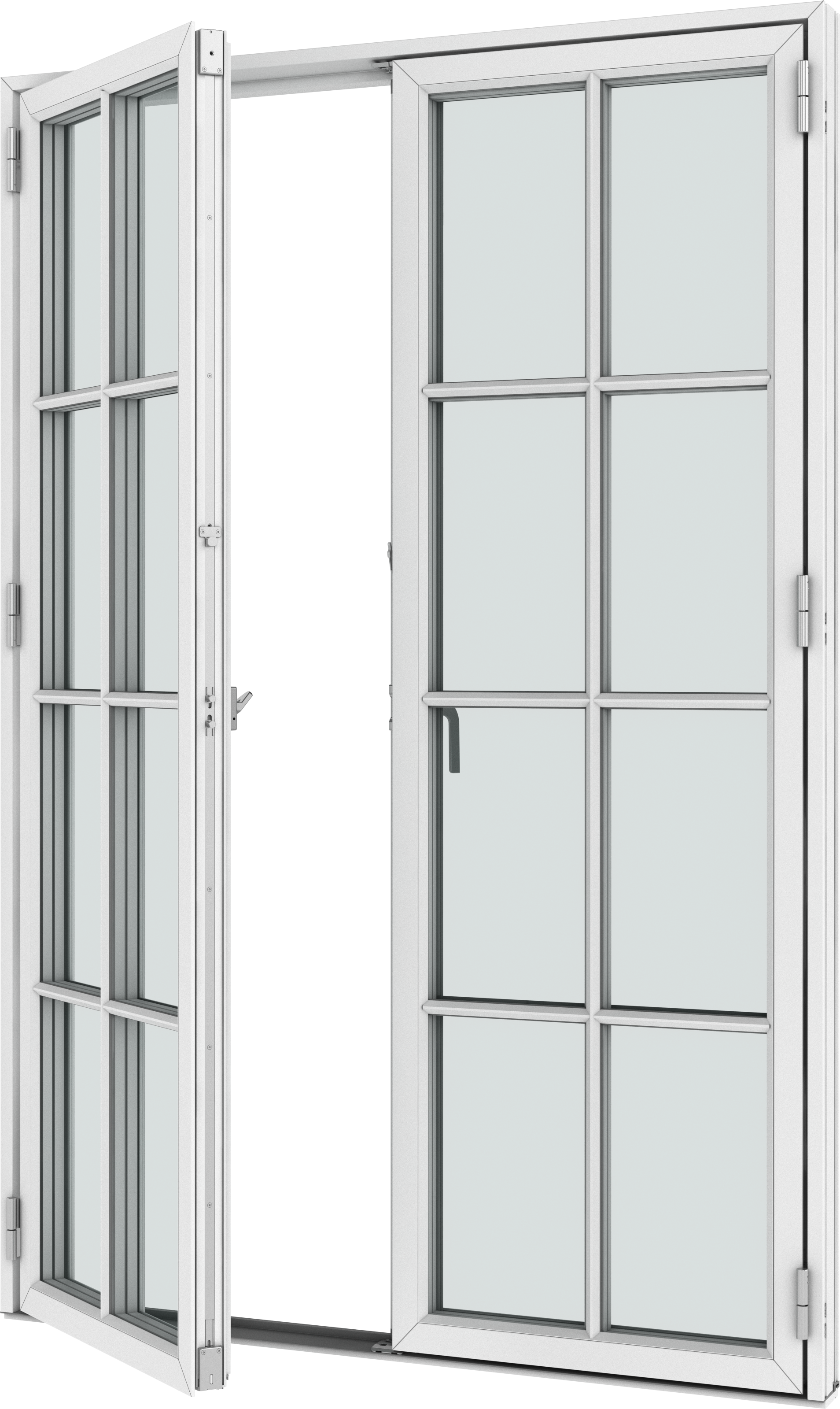

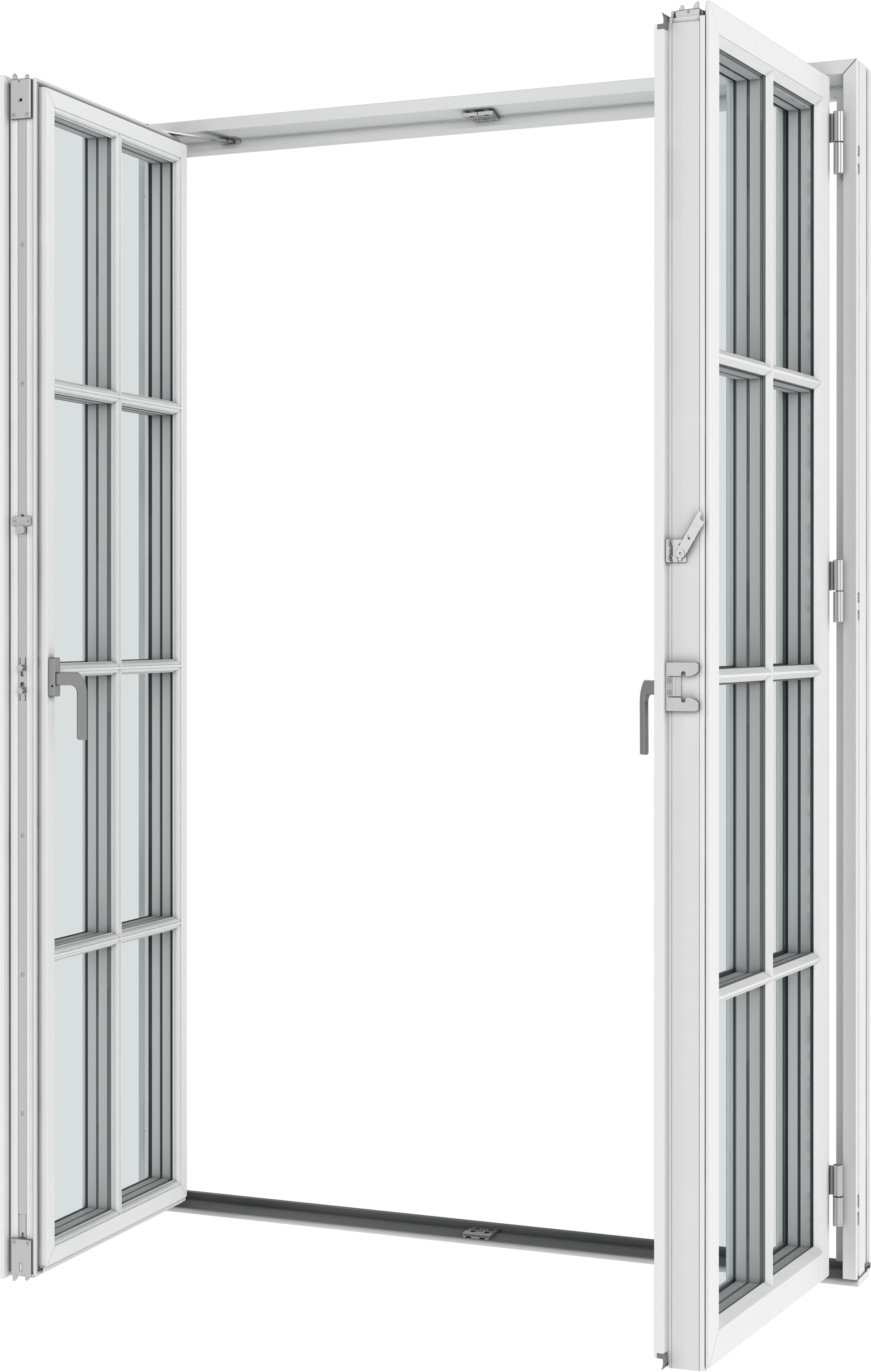

- 2-leaf casement door in wood/aluminium with rebated meeting style.
- Also available as 1-leaf (see Opening functions).
- The sash stops at 90°.
- Threshold: 18mm/22.5mm, 45mm or 51mm.
- Visible hinges.
- Available as 32mm double or 48mm triple glazing.
Standard fittings
- Two espagnolette handles with handle operated brake, which can keep the door open in a random position under calm weather conditions (not possible with 180° hinges).
- NOTE: The handle-operated brake should only be used to hold the door in an open position when weather conditions are calm. In inclement conditions the door should always be closed to ensure damage to the element is not incurred.
- Three adjustable hinges.
- Espagnolette in the master sash and an espagnolette with safety-lock in the slave sash.
- A sash lift pulley wheel to support and assist the functionality of the sash, and which must be activated during installation of the door.
Threshold
- 18mm HELO® threshold in a grey hardwearing surface finish (22.5mm in 148mm frame),
- 45mm hardwood threshold (laquered oak) or
- 51mm threshold with alu-tread plate (123mm frame depth only).
Alternative fittings
- 180° hinges (NB. Without handle operated brake)
Espagnolette handle internally only.
Show all
Min./max. & free opening sizes - 2-leaf casement door
Show more
Casement door with glazing bars
Show more
Standard fittings
Espagnolettes for 2-leaf elements
Handle operated brake
Ventilation position
90° standard hinges for windows and casement doors
Options & Accessories
_crop.png?width=212&height=212)
180° hinge for casement doors
Cup handle for external fitting
PN restrictor
Click vent
_crop.jpg?width=212&height=212)
Acoustic trickle vent
