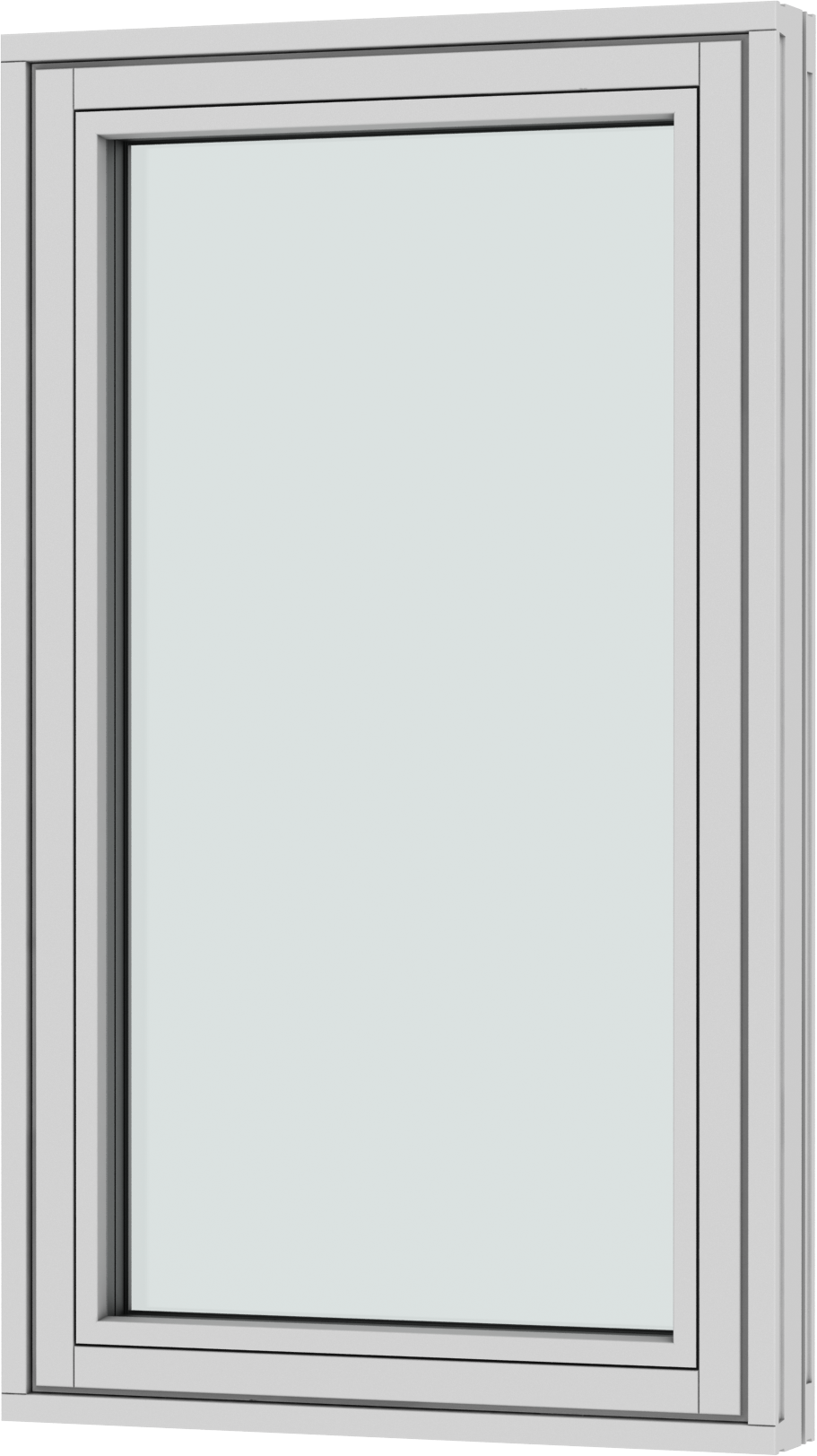

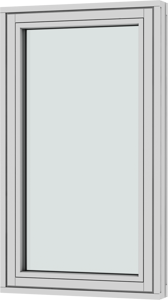

VELFAC Ribo wood - Sidehung fully reversible window

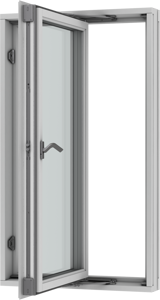

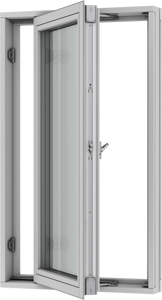

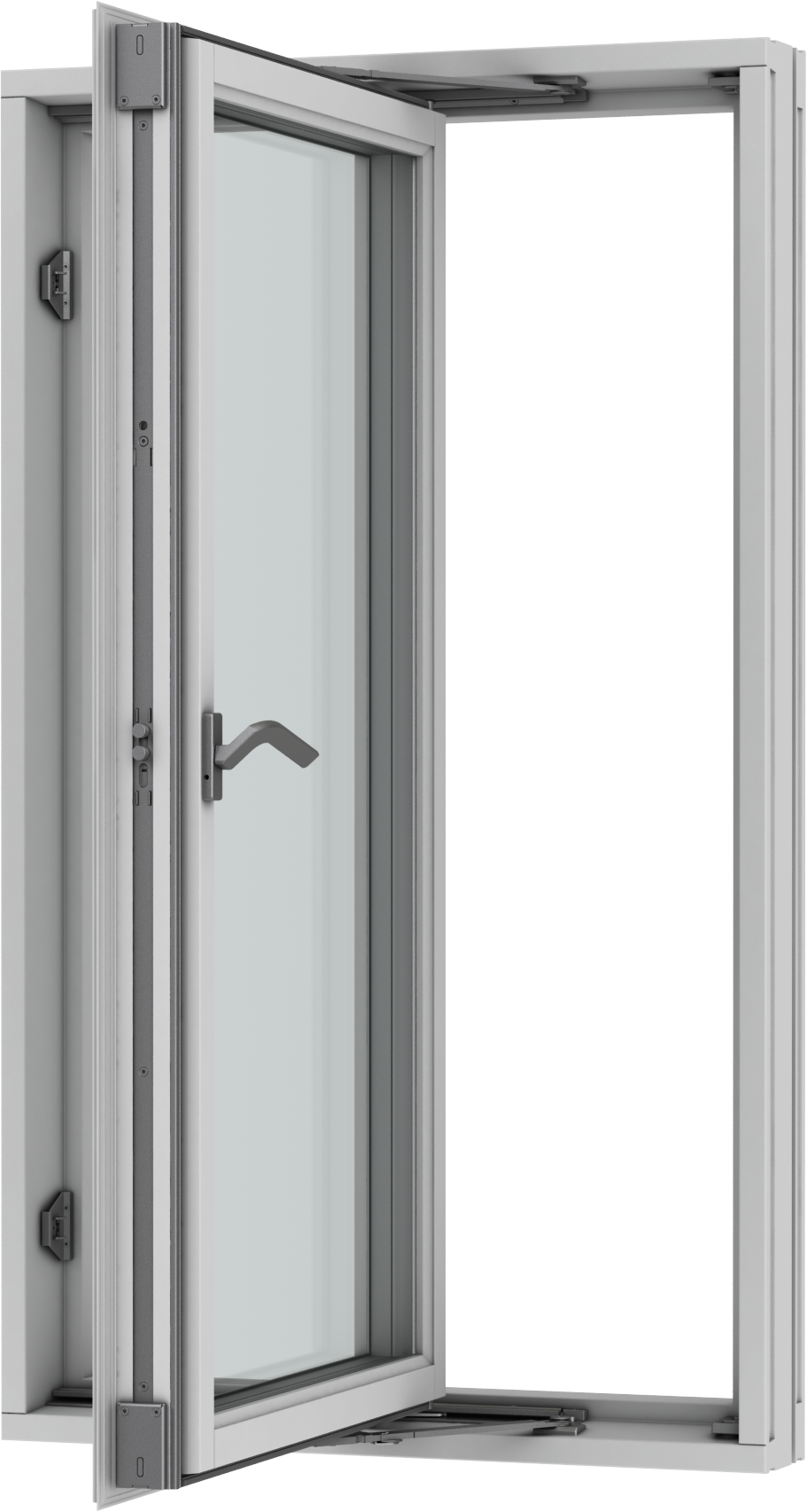

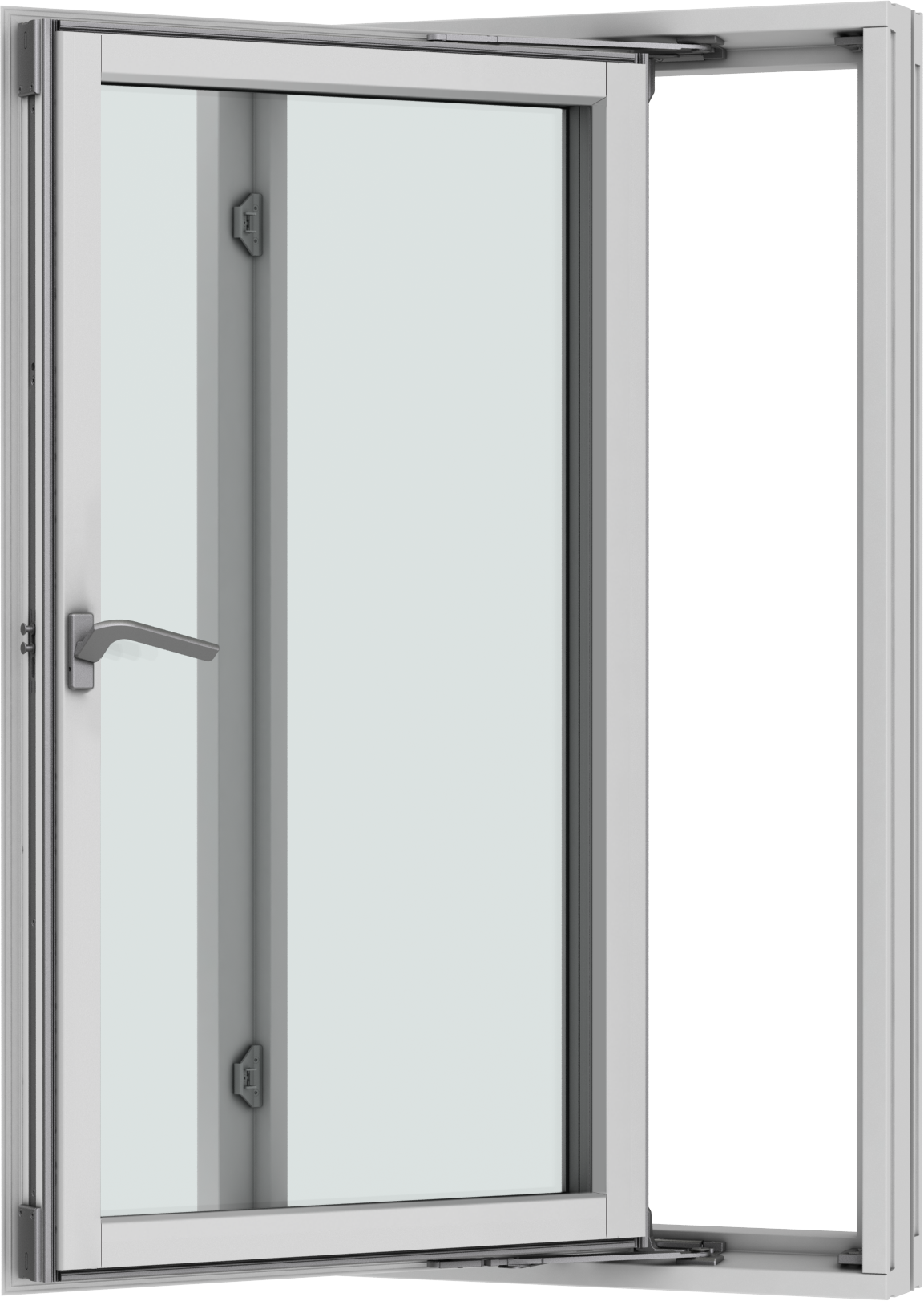

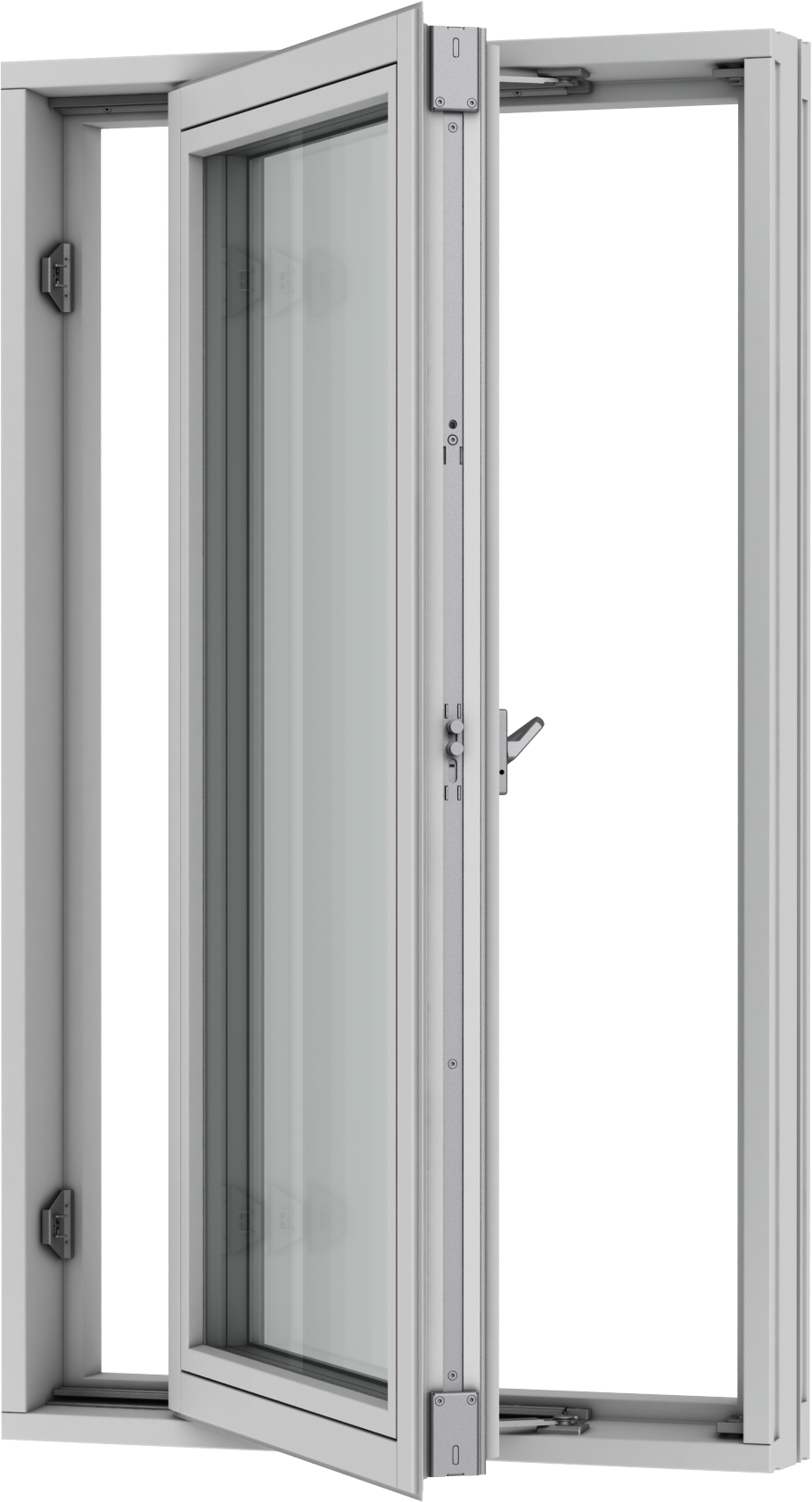

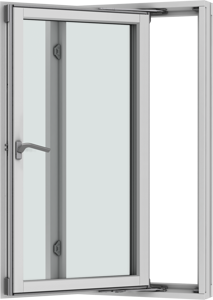

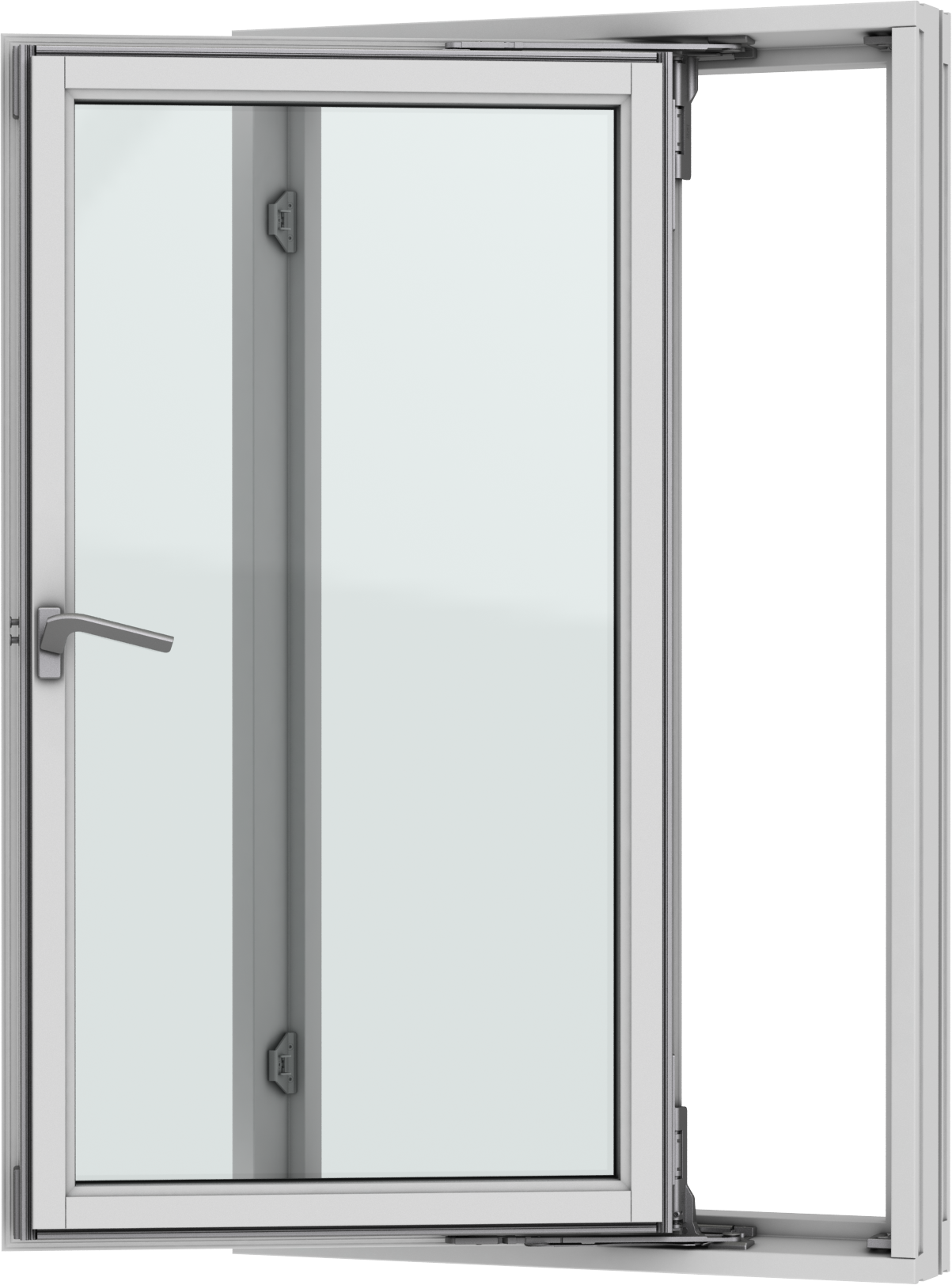

The sash can be rotated by up to 140-160° to allow cleaning from the inside.

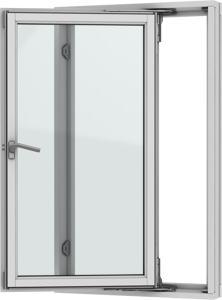

The window can be reversed to the cleaning position where an automatic catch keeps the window in place.
Available as 32mm double and 52mm triple glazing.

Standard fittings

An espagnolette handle, which has a ventilation position in the striking plates.
A stop is triggered when the window is opened approx. 30°.
Cleaning safety is activated automatically when the frame is turned to the cleaning position.
The sash moves in glide-rails installed on head and cill.
A sash lift pulley wheel to support and assist the functionality of the sash, and which must be activated during installation of the door.

The sidehung fully reverisble window can be installed with a set back from the facade of up to 200mm. The rails are constructed in such a way, that they will stop the sash in sufficient distance from the facade.
