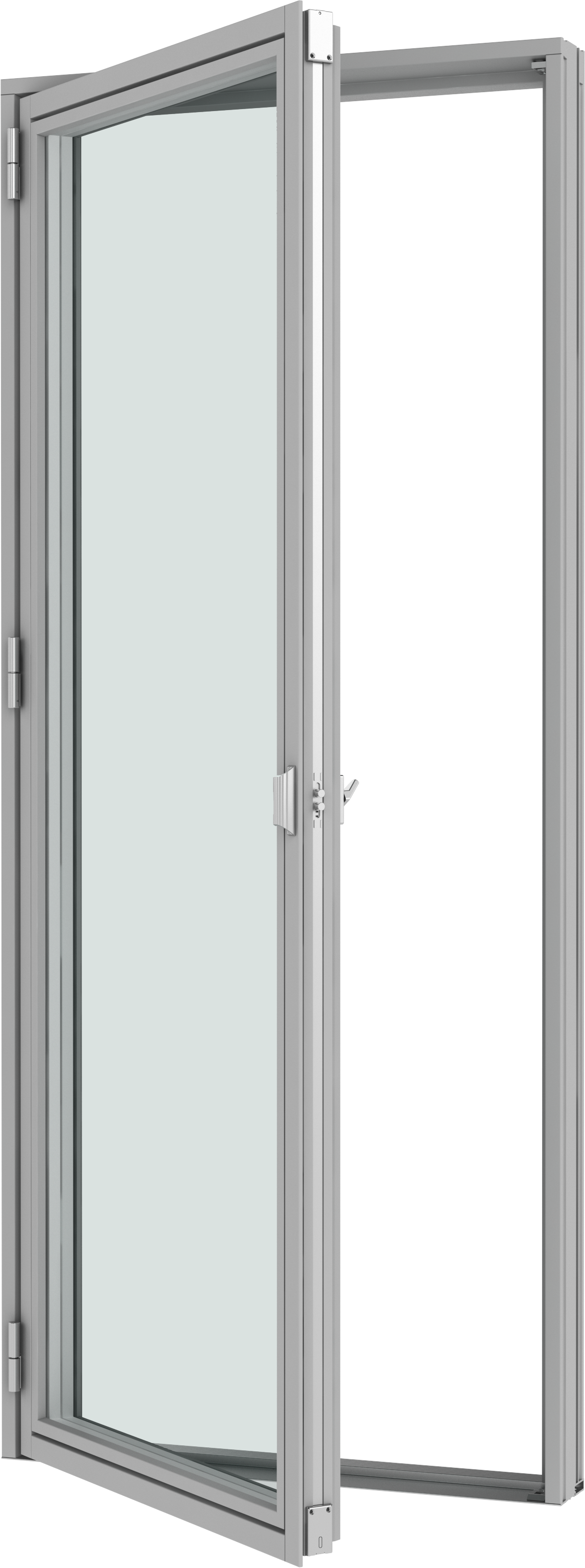

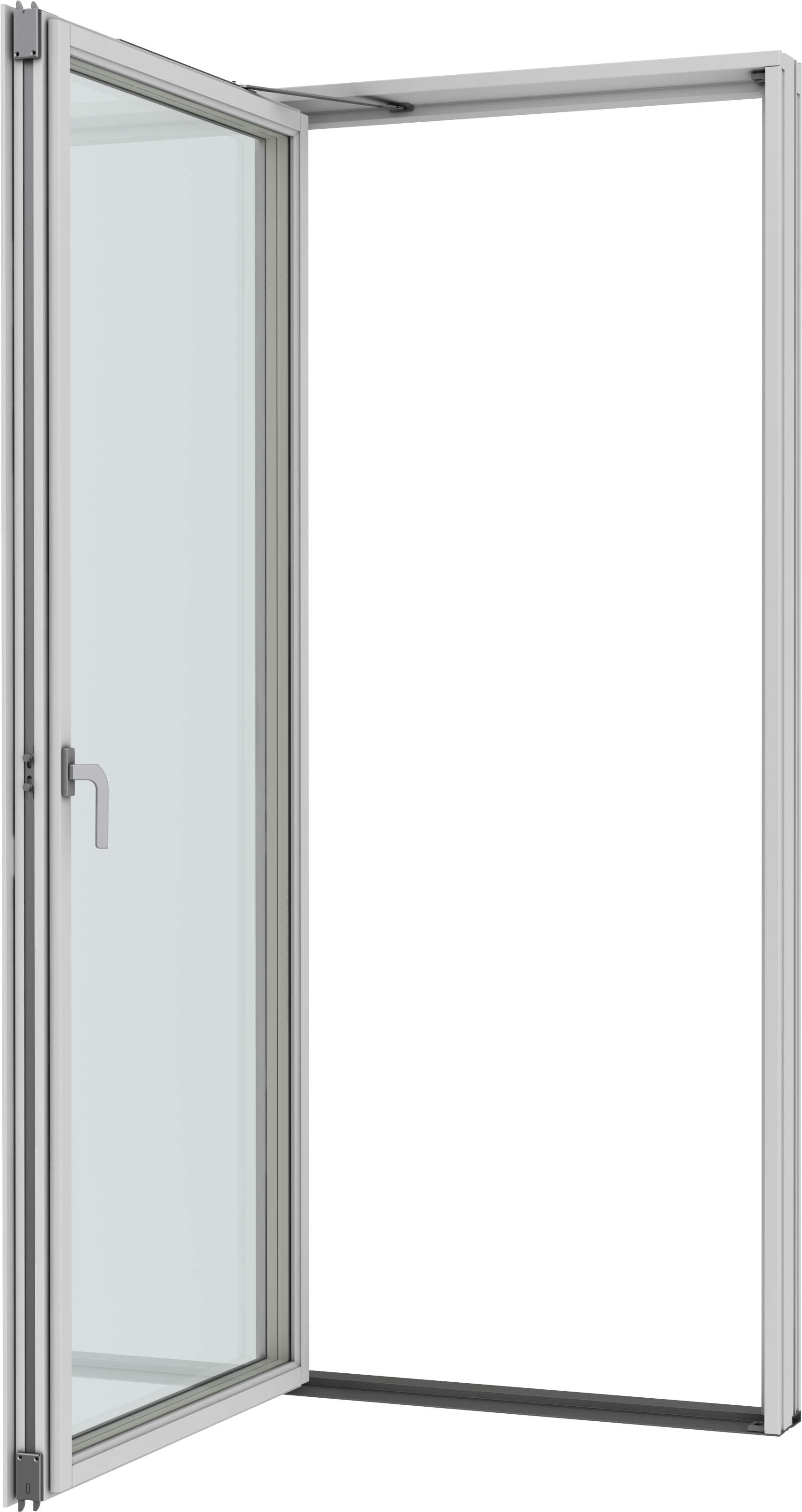

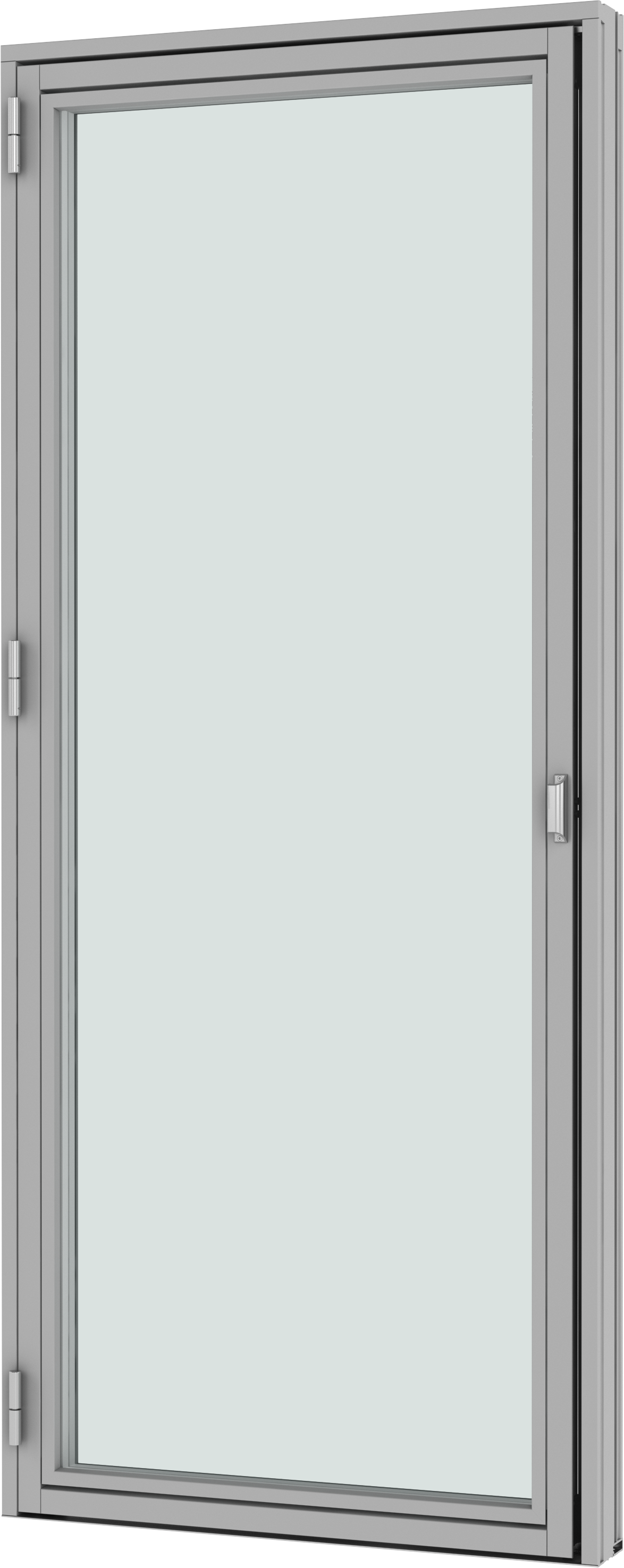

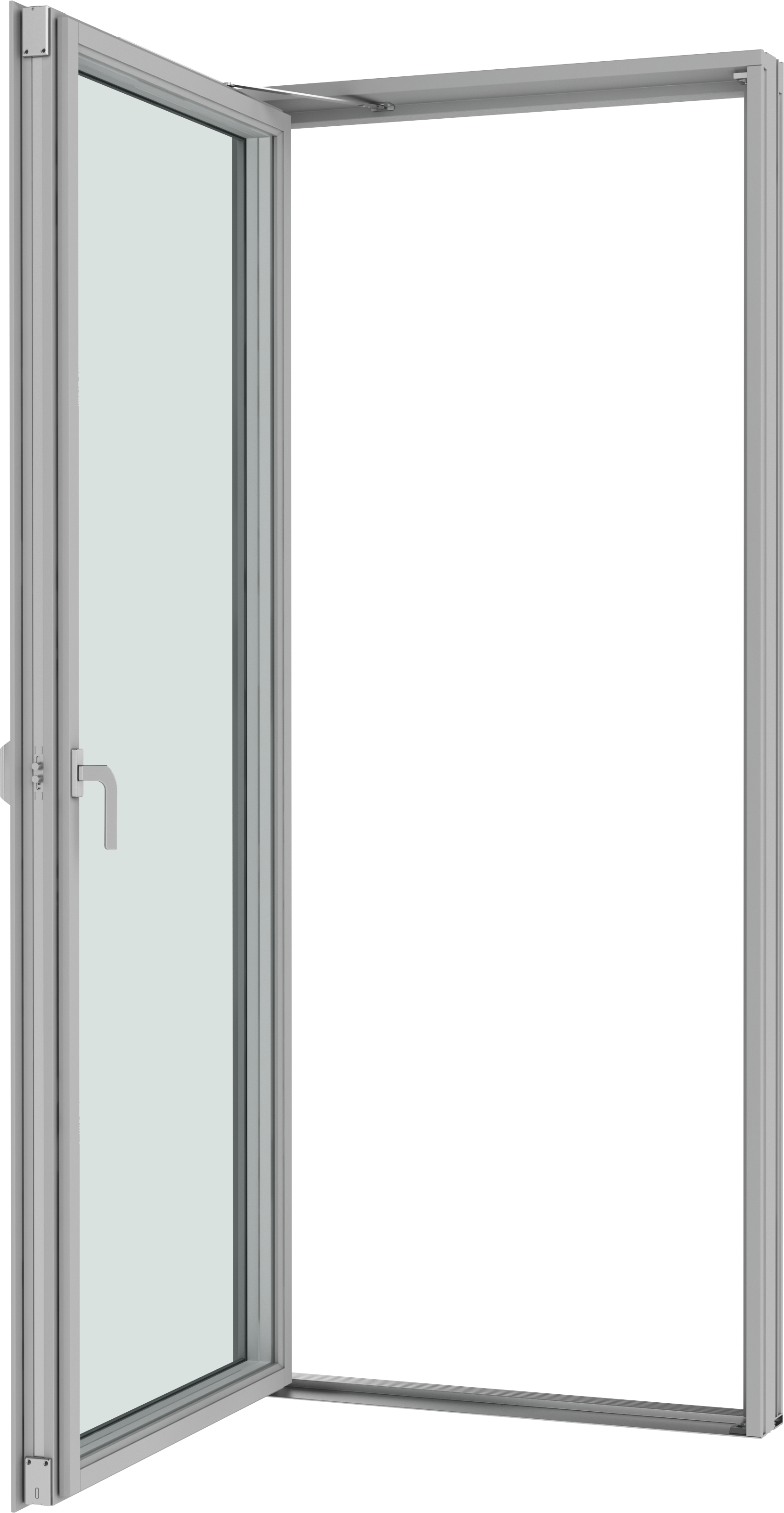

VELFAC Ribo wood - Casement door, 1-leaf
- 1-leaf casement door.
- Also available as 2-leaf (see Opening functions).
- The sash stops at approx. 90°.
- Threshold: 18mm/22.5mm, 45mm or 51mm.
- Visible hinges.
- Available as 32mm double and 52mm triple glazing.
Standard fittings
- An espagnolette handle, which has a ventilation position in the striking plates, and a handle operated brake, which can keep the window open in a random position under calm weather conditions (not possible with 180° hinges).
- NOTE: The handle-operated brake should only be used to hold the door in an open position when weather conditions are calm. In inclement conditions the door should always be closed to ensure damage to the element is not incurred.
- Three adjustable hinges.
- A sash lift pulley wheel to support and assist the functionality of the sash, and which must be activated during installation of the door.
Threshold
- 18mm HELO® threshold in a grey hardwearing surface finish (22.5mm in 140mm frame),
- 45mm hardwood threshold (laquered oak) or
- 51mm threshold with alu-tread plate (115mm frame depth only).
Alternative fittings
- 180° hinges (NB. Without handle operated brake)
Espagnolette handle internally only.
Show all
Min./max. & free opening sizes - 1-leaf casement door
Show more

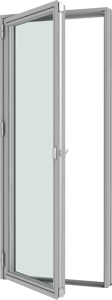

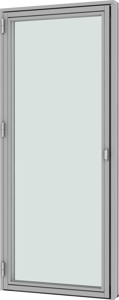

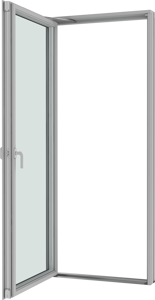

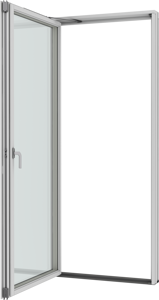

See how the casement door opens
Show more
Standard fittings
Espagnolette handle
Handle operated brake
Ventilation position
90° standard hinges for windows and casement doors
Options & Accessories
Espagnolette with safety-lock
Espagnolette with lock
PN restrictor
Click vent
_crop.jpg?width=212&height=212)
Acoustic trickle vent
180° hinge for casement doors
Cup handle for external fitting
