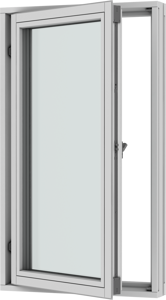

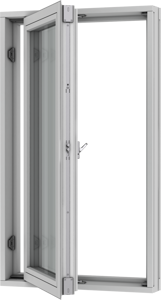

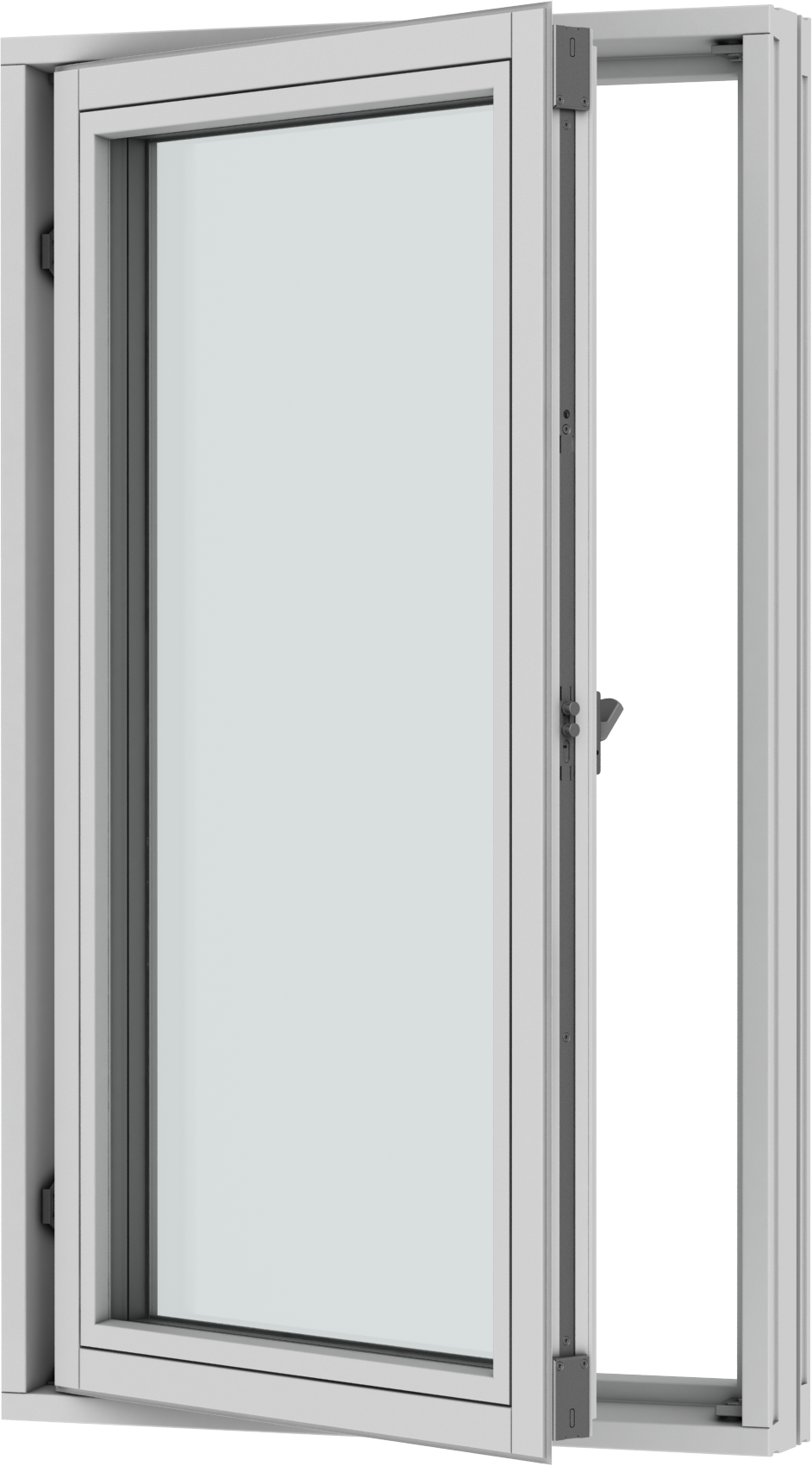

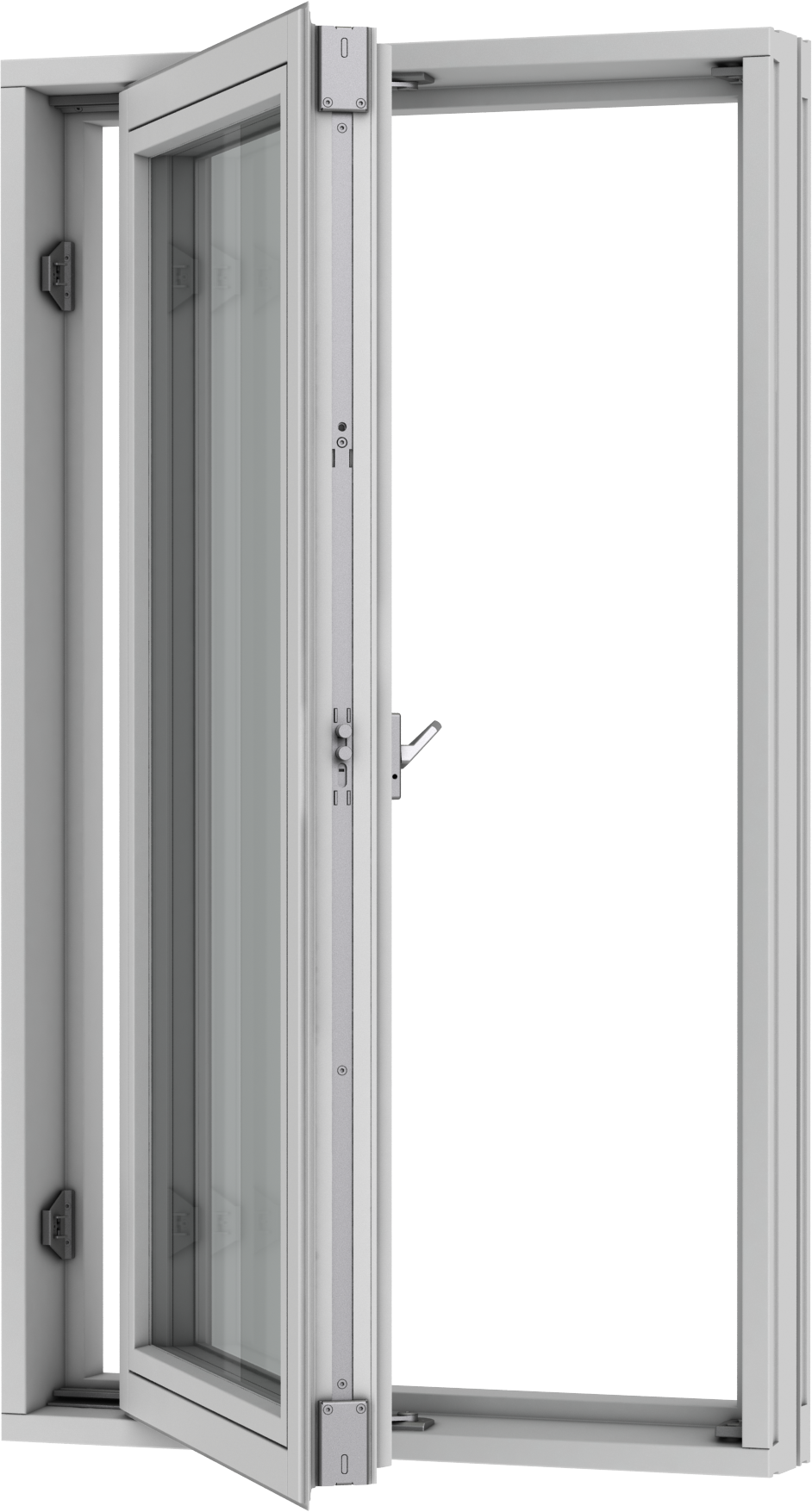

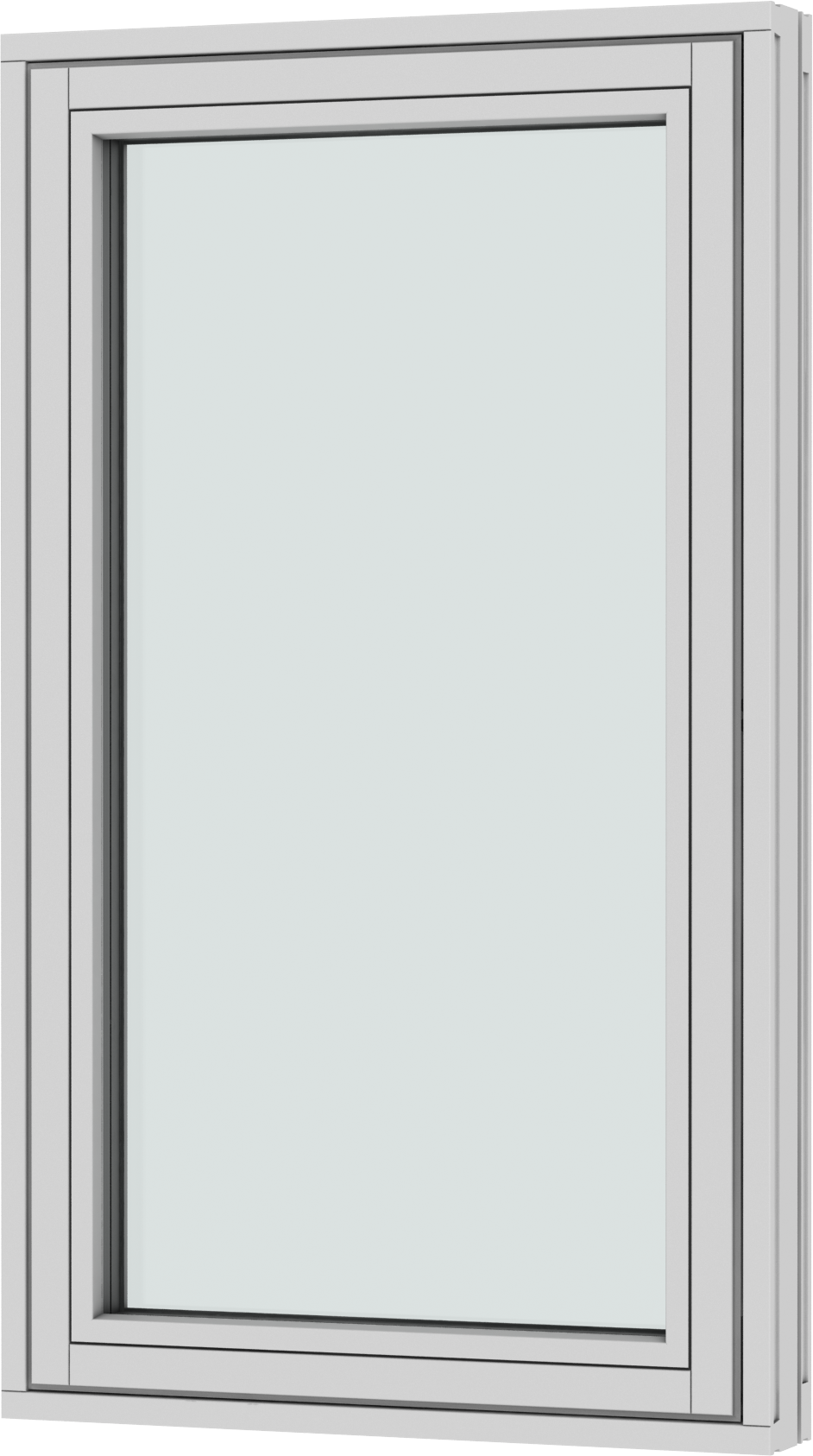

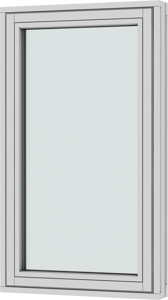

VELFAC Ribo wood - Sideguided window
- Available as single leaf or double leaf with French Casement or rebated meeting style.
- The sash stops at max. 85°.

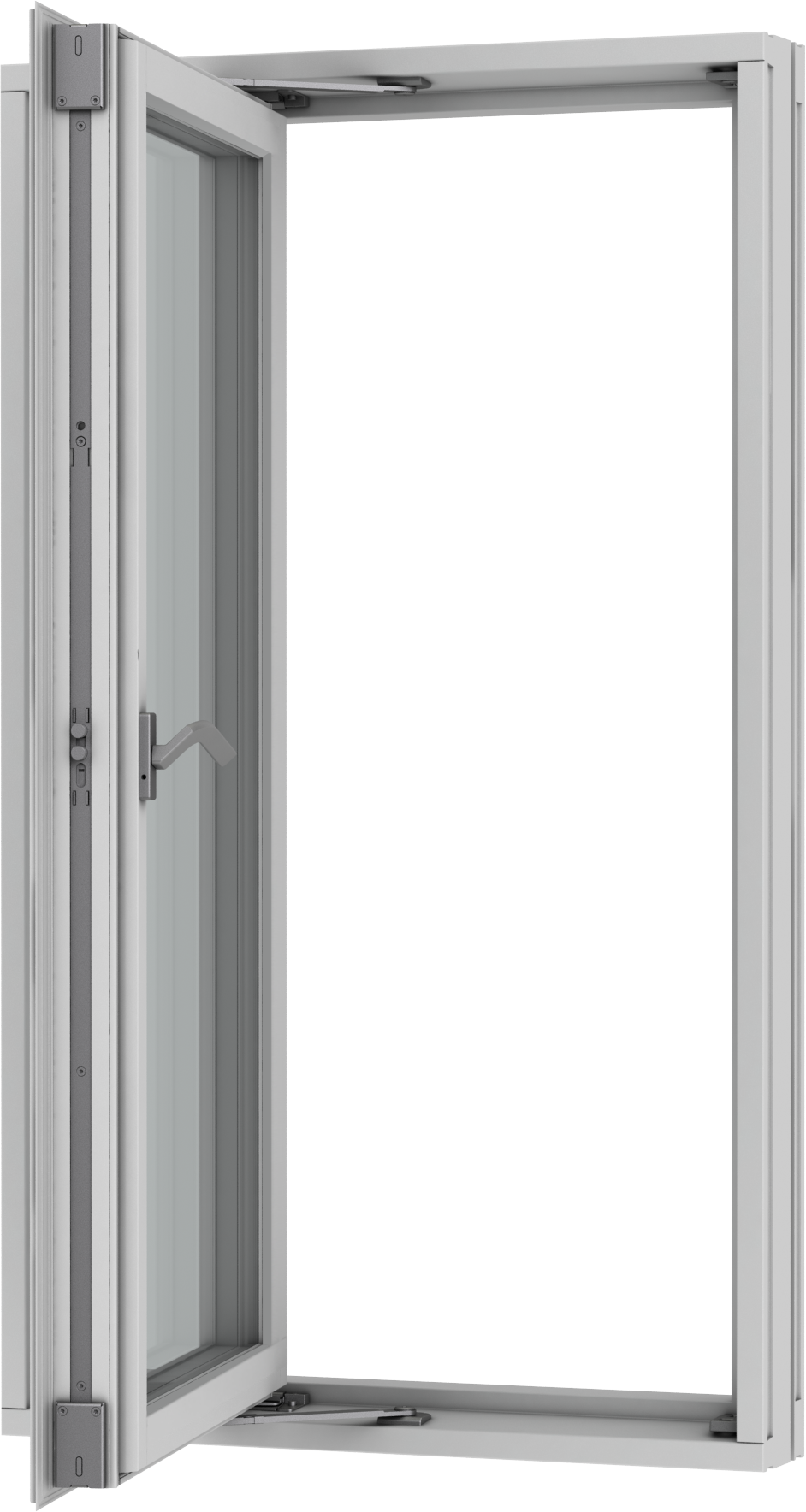

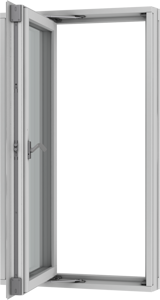

- When fully opened, a 150mm (minimum) gap allows cleaning from the inside.
- Available as 32mm double and 52mm triple glazing.
Standard fittings
- Espagnolette handle, where the striking plate allows a 5mm ventilation opening.
- A sash lift pulley wheel to support and assist the functionality of the sash, and which must be activated during installation of the door.
- 2-leaf elements have a standard espagnolette in the master sash and an espagnolette with safety-lock in the slave sash.
Show all
Min./max. & free opening sizes - sideguided window
Show more
See how the window opens
Show more
Standard fittings
Espagnolette handle
Ventilation position
Espagnolettes for 2-leaf elements
Options & Accessories
Espagnolette with safety-lock
Espagnolette with lock
Standard restrictor
PN restrictor
Click vent
_crop.jpg?width=212&height=212)
Acoustic trickle vent
