VELFAC Ribo wood/aluminium - Outward opening patio door, 1-leaf
- Outward opening 1-leaf patio door.
- Also available as double leaf or single leaf with fixed sidelight and/or fan light.
- Visible hinges.
- Available as 32mm double and 52mm triple glazing.
- Threshold: 18mm, 22.5mm or 45mm.
Standard fittings
- The door is fitted with a window espagnolette handle internally.
- The handle operated brake can keep the door open in a random position under calm weather conditions between approx. 10-85° (not possible with 180° hinges).
- Three adjustable corrosion-proof hinges.
- A sash lift pulley wheel to support and assist the functionality of the sash, and which must be activated during installation of the door.
Threshold:
- 18mm threshold of HELO® composite material in a grey hardwearing surface finish (22.5mm in combination with 148mm frame) or
- 45mm threshold of hardwood (laquered oak).
Alternative fittings
- Espagnolette window handle with safety-lock.
- Espagnolette window handle with lock (small key).
- Espagnolette handle internally only, with trimplate and cylinder lock.
- Espagnolette handle internally and externally, with trimplate and cylinder lock.
- Espagnolette handle internally and externally, internally with trimplate and cylinder lock, externally with trimplate and cover plate.
- 180° hinges (the patio door will then be without handle operated brake).
No handle operated brake on narrow doors:
- frame width FW<650mm or
- sash width SW<587.2mm.
Min./max. & free opening sizes - outward opening 1-leaf glazed door

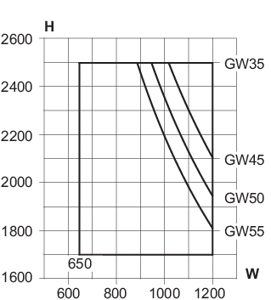

Min./max. sizes, 1-leaf
Calculation of free opening, outward opening doors
Minimize
Standard fittings
Espagnolette handle
Handle operated brake
Standard hinge for doors
Options & Accessories
Espagnolette for patio door
Espagnolette with safety-lock
Espagnolette with lock
180° hinge with larger set-back for outward opening doors
Cup handle for external fitting
Click vent - entrance and patio doors
