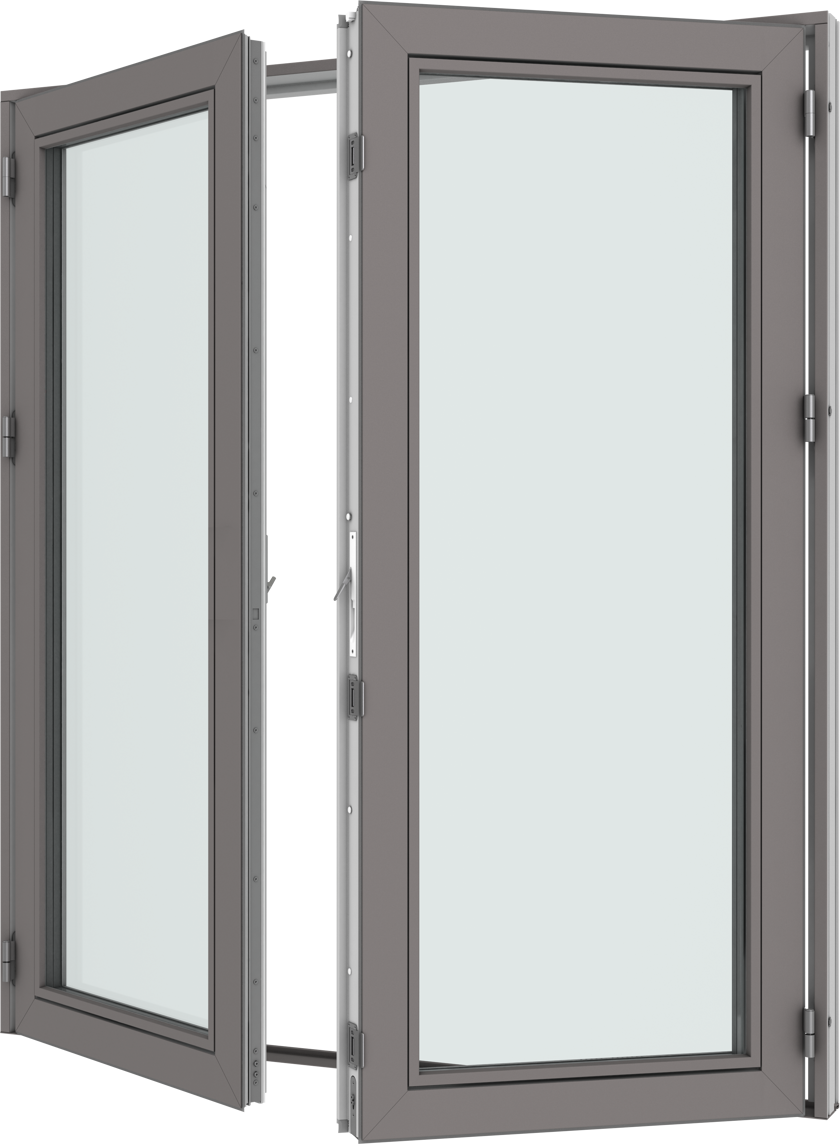

VELFAC Ribo wood/aluminium - Patio door, 2-leaf
- 2-leaf with rebated meeting style.
- Same construction as the entrance doors.
- Also available as single leaf. Refer to patio door 1-leaf for information.
- Inward or outward opening.
- Visible hinges.
- Available as 32mm double and 52mm triple glazing.
Standard fittings
- The door is fitted with a window espagnolette handle internally.
- The handle operated brake can keep the door open in a random position under calm weather conditions between approx. 10-85° (not possible with 180° hinges).
- Freeing the flushbolt allows the slave door to be opened.
- Each leaf is fitted with three visible, corrosion-proof hinges.
- A sash lift pulley wheel to support and assist the functionality of the sash, and which must be activated during installation of the door.
Threshold outward opening doors:
- 18mm threshold of HELO® composite material in a grey hardwearing surface finish (22.5mm in combination with 148mm frame) or
- 45mm threshold of hardwood (laquered oak).
Threshold inward opening doors:
- 22.5mm threshold of HELO® composite material in a grey hardwearing surface finish or
- 45mm threshold of hardwood (laquered oak).
Alternative fittings
- Espagnolette window handle with safety-lock.
- Espagnolette window handle with lock (small key).
- Espagnolette handle internally only, with trimplate and cylinder lock.
- Espagnolette handle internally and externally, with trimplate and cylinder lock.
- Espagnolette handle internally and externally, internally with trimplate and cylinder lock, externally with trimplate and cover plate.
- 180° hinges (the patio door will then be without handle operated brake).
No handle operated brake on:
- narrow doors where sash width <587.2mm.
- on the slave leaf.
Min./max. & free opening sizes - 2-leaf glazed patio door
Min./max. sizes, 2-leaf glazed door
Calculation of free opening, inward opening doors
Calculation of free opening, outward opening doors
Minimize
Standard fittings
Espagnolette handle
Handle operated brake
Flushbolt for 2-leaf entrance and patio doors
Standard hinge for doors
Options & Accessories
Espagnolette with safety-lock
Espagnolette with lock
Espagnolette for patio door
180° hinge with larger set-back for outward opening doors
Cup handle for external fitting
Click vent - entrance and patio doors
Preparation for barrier solution
