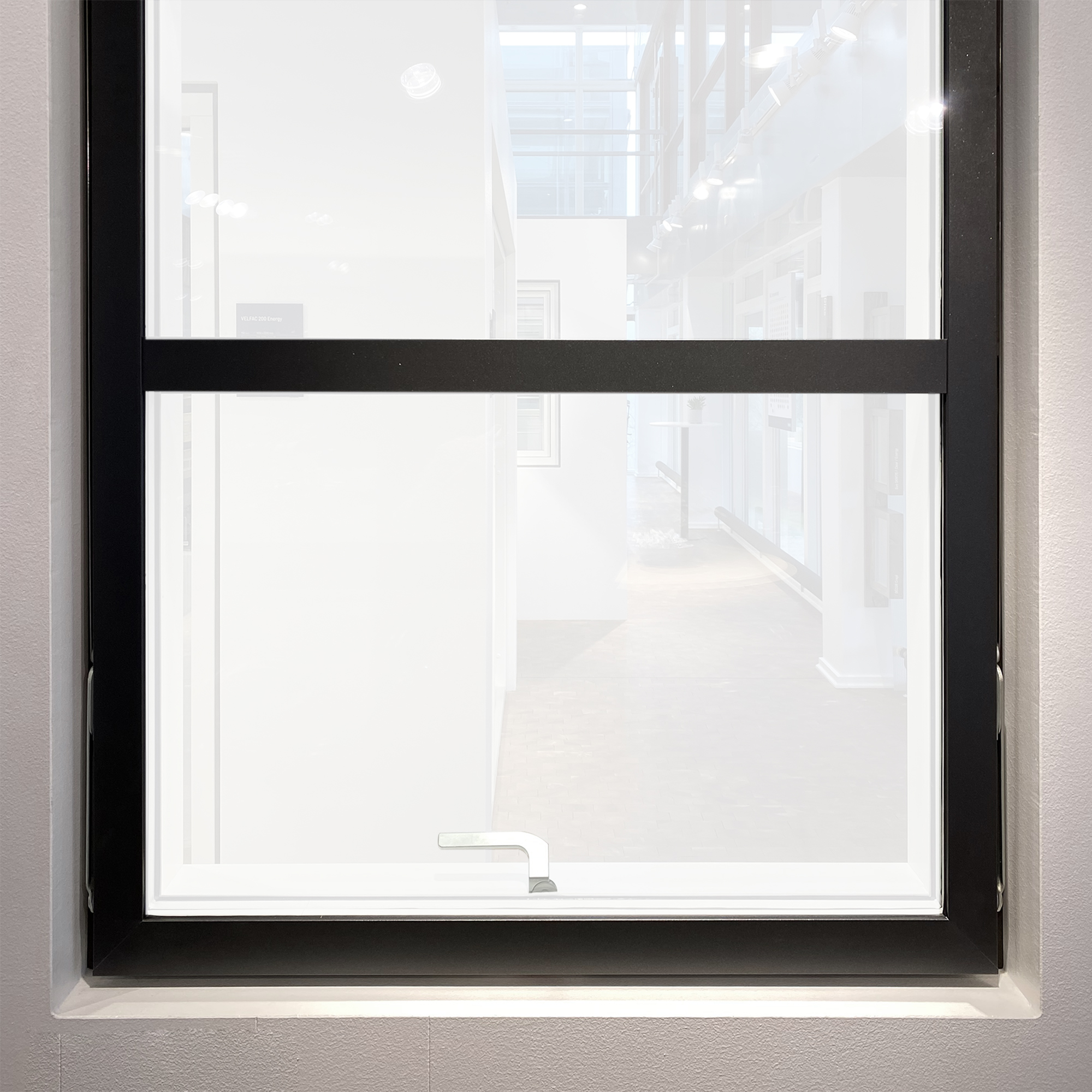

VELFAC 200 ENERGY Tophung reversible window

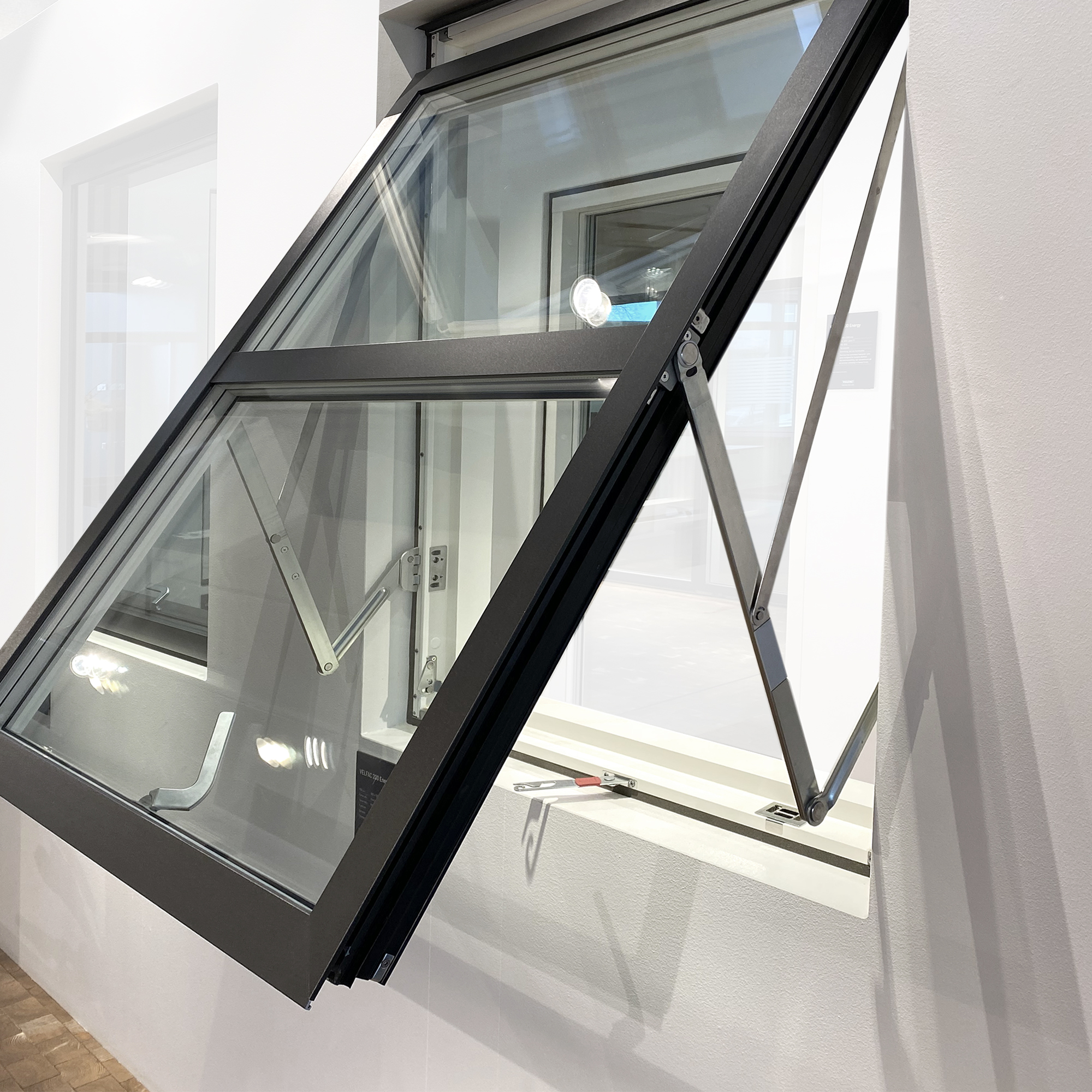

The sash can be rotated by up to 170° to allow cleaning from the inside, without oversail.
The window can be reversed to the cleaning position where automatic catches keep the window in place.
Available as 48mm triple glazing.

Standard fittings

An espagnolette handle, which has a ventilation position in the striking plates.
An opening restrictor is triggered when the window is opened approx. 50mm. The restrictor can be locked in the ventilation position under calm weather conditions.
The cleaning catches are activated automatically when the sash is turned to the cleaning position.

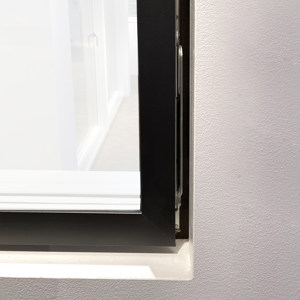

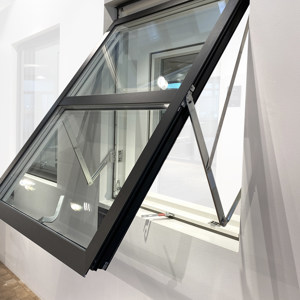

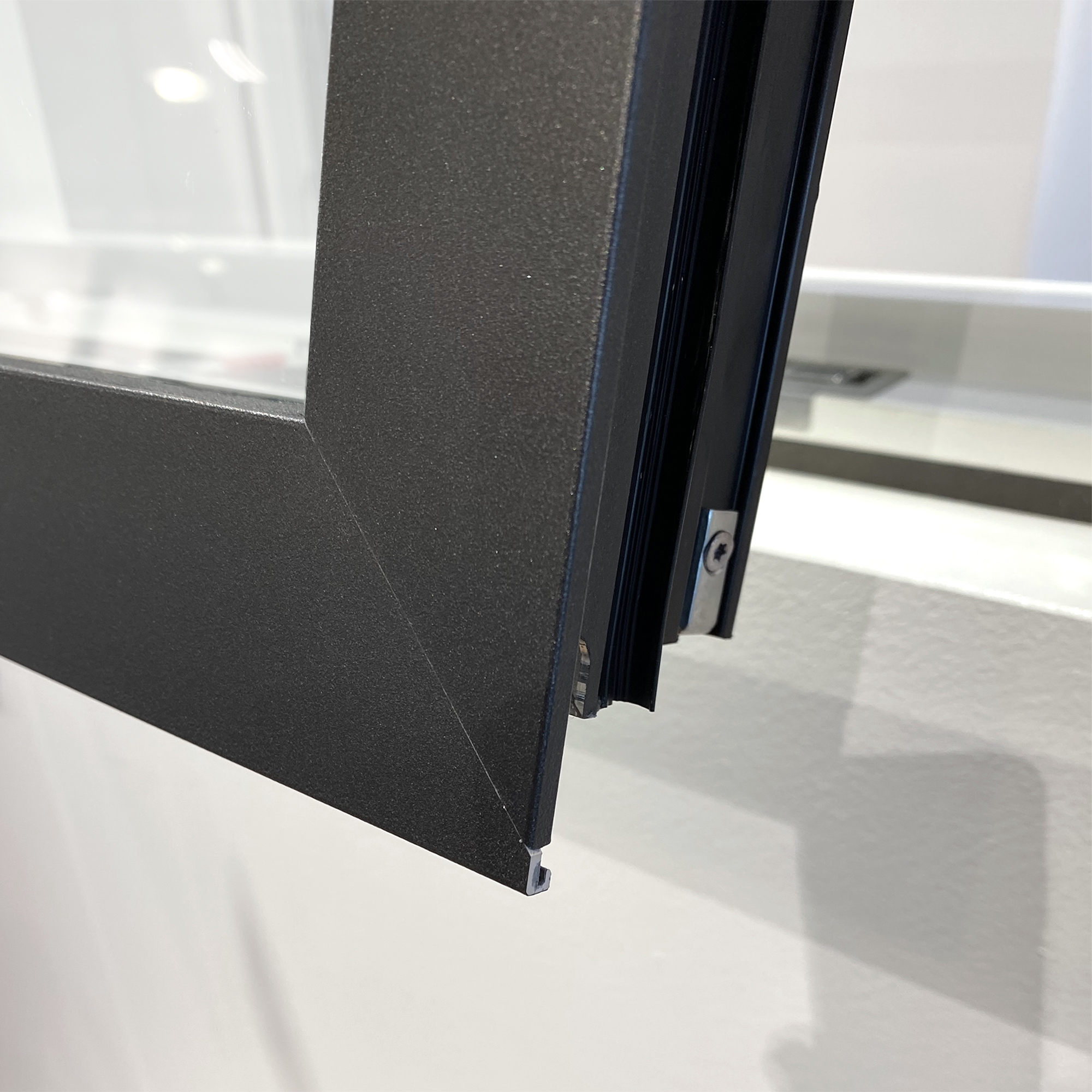

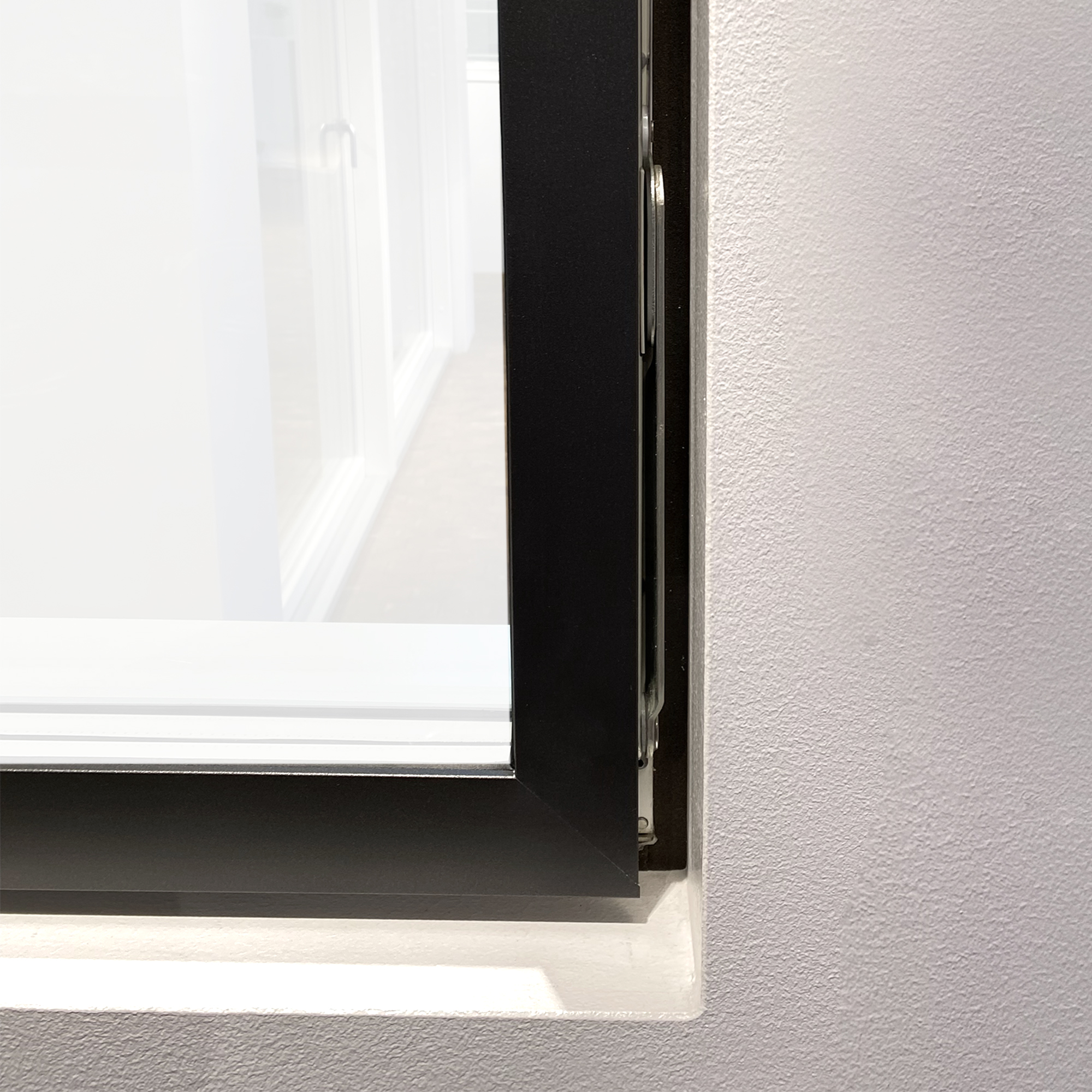

The reversible hinges have grey corrosion-proof surface treatment. From a close distance the reversible hinge will be visible, as the sash is 6mm slimmer on both sides than the standard sash.

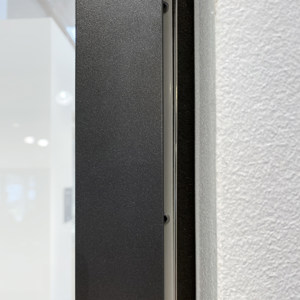

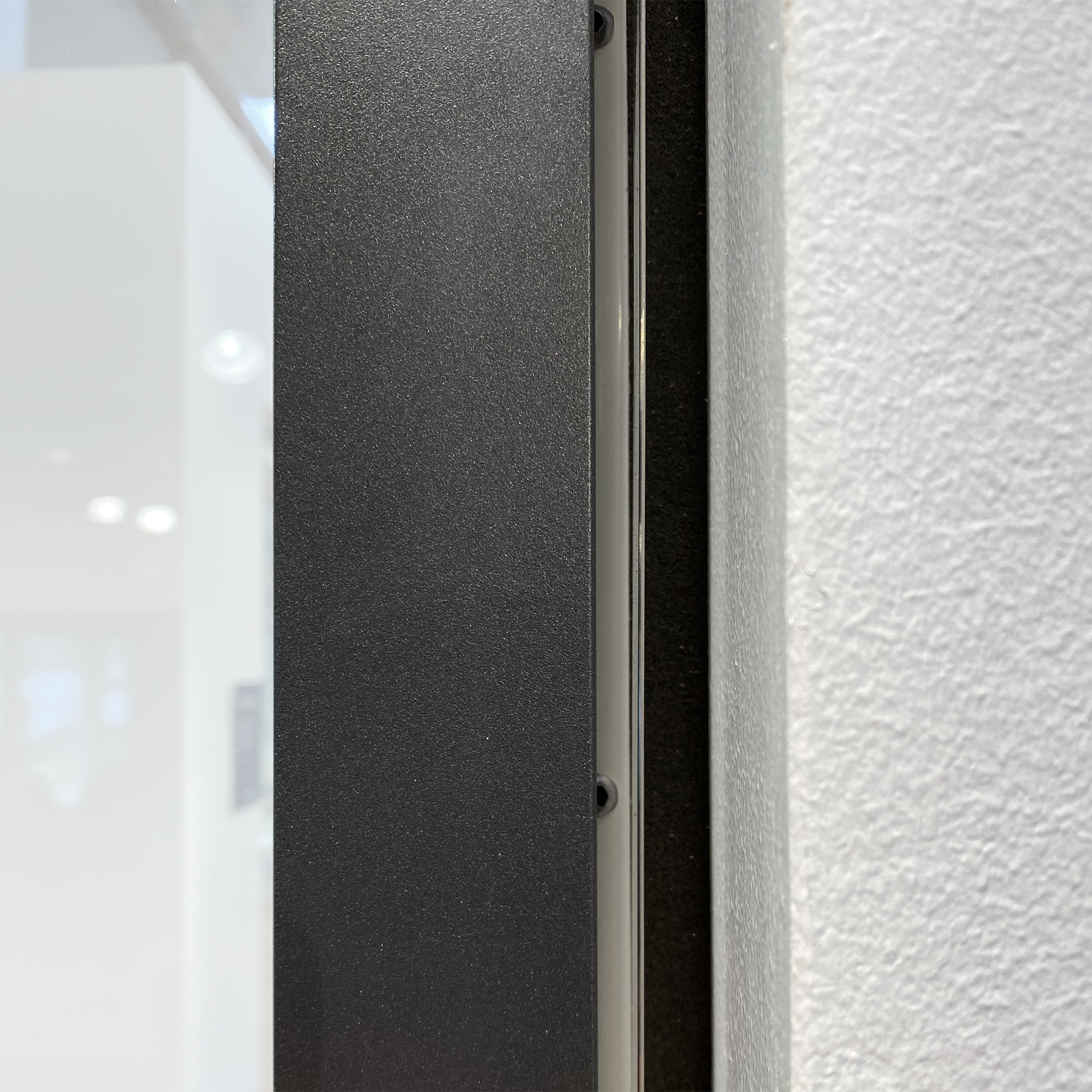

The guide rails are white and therefore more visible on dark frames as well as behind dark sashes.
Windows >1400mm are fitted with circular catch handles on both sides to ensure wind and water tightness.

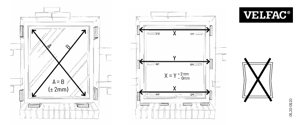

Please observe the installation recommendations below.
Coupling the reversible window next to a VELFAC In element is not possible.
Maintenance: The reversible function is dependent on the guide rails being regularly cleaned, sprayed and exercised, as described in the VELFAC User Guide.
