VELFAC 200 ENERGY Sliding casement door, 2-leaf, with 70mm threshold

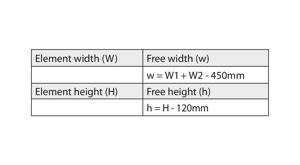

The sliding casement door provides up to 2.5m free opening.
Max. width for total screen is 6m including the fixed sashes.
The frame profile of the door matches that of the VELFAC Edge window series.
When opened, the master door moves outwards from the frame, and then slides across the adjacent fixed sash, 116-126mm out.
Freeing the flushbolt in the French casement mullion allows the slave door to be opened similarly.
Available as 48mm triple glazing.
Supplied as three elements which must be coupled on the building site: one element with two opening sashes and two elements with a fixed sash.

Standard fittings

Egress doors – Fitted with an internal handle only.

Two espagnolette handles with a ventilation position in the striking plates.
Freeing the flushbolt in the French casement mullion allows the slave door to be opened similarly.
70mm threshold with aluminium tread-plate.
All hardware is made of anodised aluminium or coated zinc or steel.

The fixed parts of the sliding door must at least be as wide as the opening parts.
