VELFAC 200 ENERGY Sidehung window
- Available as single or French Casement double leaf.
- The sash stops at 90°.
- Concealed hinges.
- Available as 48mm triple glazing.
Standard fittings
- An espagnolette handle, which has a ventilation position in the striking plates.
- An adjustable friction arm can hold the window open under calm weather conditions.
- The friction arm is made of steel with a grey, corrosion-proof zinc-aluminium surface finish.
- Two- three concealed, corrosion-proof hinges.
Alternative fittings
Windows slimmer than 370mm are supplied with circular catch handle and friction arm, not with espagnolette handle.
- Ventilation: Adjustable friction arms are not designed for use in windy conditions. In such conditions the door should be closed or otherwise secured.
- Installation: Requires a minimum distance of 10mm for the sealant between frame and wall. If sidehung sashes are hinged next to each other, a gap of 15mm between frames is required.
Min./max. & free opening sizes - sidehung window

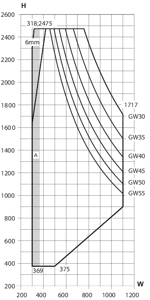

Min./max. sizes, 1-leaf

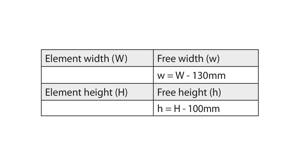

Calculation of free opening, 1-leaf

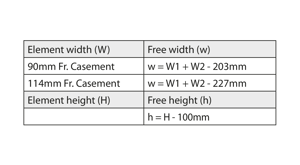

Calculation of free opening, 2-leaf
Minimize
Standard fittings
Espagnolette, standard
Friction arm
Flushbolt for French casement
Ventilation position
Consealed 90⁰ hinges for windows and casement doors
Options & Accessories
Espagnolette with safety-lock
Espagnolette with lock
Espagnolette for cylinder lock
WindowMaster motor for Natural Ventilation
Circular catch handle
Restrictor with ventilation position
Lockable restrictor (160mm or 270mm)
Click vent
_crop.jpg?width=212&height=212)
Acoustic trickle vent
VELFAC maxi-handle
