dovista

VELFAC 200 ENERGY Sliding casement door, 1-leaf, with 24mm threshold

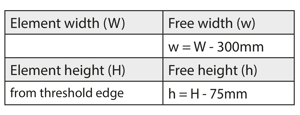

The sliding casement door provides up to 1.2m free opening.
When properly fitted and adjusted, the door can be opened by one hand.
The sash profile of the door matches that of the VELFAC 200 window series.
When opened, the master door moves outwards from the frame, and then slides across the adjacent fixed sash, 117-127mm out.
Available as 48mm triple glazing.

Standard fittings

Egress doors – Fitted with an internal handle only.

Two espagnolette handles with a ventilation position in the striking plates.
24mm HELO® threshold with aluminium tread-plate.
Internal coverplate for the sliding truck, which will be delivered in the same colour as the glazing beads (white, grey or black).
All hardware is made of anodised aluminium or coated zinc or steel.

Alternative fittings

If required, a ramp for the internal side is available.

Fixed sidelights for the sliding casement door with 24mm threshold:
Sidelights should be ordered with the corresponding 24mm threshold as the sliding casement door to achieve sash alignment at both top and bottom.

There are Visible sliding trucks and guide rails beneath the sliding casement door at its entire length, and beneath eventual matching sidelights – please review image in Fittings section.
