VELFAC Aluminium door - Escape door (type 5)
Door functionality
This is a typical escape door which can be locked from the inside and or the outside.
The panic push bar is positioned on the inside, and when the bar is pressed the latch & the deadlock will be released.
From outside, the emergency escape handle will only operate the latch and to release the deadlock the cylinder must be disengaged via the key. Note, the cylinder must be fully released to enable operation of the handle and latch.
To secure this door overnight, it must be locked manually by operating the cylinder.
Door functionality
This is a typical escape door which can be locked from the inside and or the outside.
The panic push bar is positioned on the inside, and when the bar is pressed the latch & the deadlock will be released.
From outside, the emergency escape handle will only operate the latch and to release the deadlock the cylinder must be disengaged via the key. Note, the cylinder must be fully released to enable operation of the handle and latch.
To secure this door overnight, it must be locked manually by operating the cylinder.
- The aluminium escape door is designed for installation where emergency or panic escape is necessary.
- Typical situations include emergency/panic exits from commercial, public or large residential buildings.
- The door is made of thermally broken aluminium profiles and can be divided by one or more glazing bars, with the resulting apertures glazed or panelled in aluminium.
- The door can be installed as either single or double leafed and outward opening.
- Available with 24mm double or 48mm triple glazing.
- The door can be coupled with VELFAC windows to create glazed entrance screens for receptions or atria.
Standard fittings
SINGLE DOORS
Primary lock:
DOUBLE DOORS
As above plus:
Primary lock:
- Deadlock & Emergency Latch /singfle panic function)
- Push bar internally (EN1125 compliant)
- Emergency escape handle externally
- Europrofile cylinder – keyed external, thumb turn internal
- TS83 door closer with hold open facility (natural anodised)
- Slimline barrel hinges (natural anodised)
DOUBLE DOORS
As above plus:
- Reverse lock box – slave leaf
- Push bar internally – slave leaf
- TS83 door closer with hold open facility (natural anodised) - slave leaf
- Door selector (where two door closers are fitted)
Alternative fittings
- 3-point emergency lock.
- Electric strike.
- Three part claw hinge.
- Claw hinge with anti-finger trap gasket.
- The door can be supplied with different handles and lock boxes than the above mentioned. For further information please call VELFAC.
Show all

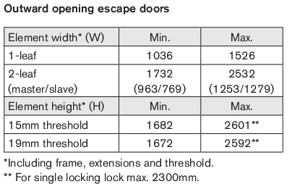

Min./max. & free opening sizes - door type 5, escape door
Show more
Glazing bar options
Show more
Standard fittings
Panic push bar
Emergency escape handle
Europrofile cylinder
Barrel hinges
Door closer
Options & Accessories
Cranked pull handle
Circular pull handle
Full height pull handle
Knob handle
Claw hinges with/without security adaptor
Barrel hinges with security adaptor
Letter plate
