VELFAC Aluminium door - Main entrance door (type 2)
Door functionality
This is a entrance door which can be locked from the inside and or the outside.
The pull handle is positioned on both sides but has no impact on the function of the roller latch or deadlock. The deadlock is operated by the cylinder only.
To secure this door overnight, it must be locked manually. Once the deadlock is released to open the door the customer will either push or pull.
Door functionality
This is a entrance door which can be locked from the inside and or the outside.
The pull handle is positioned on both sides but has no impact on the function of the roller latch or deadlock. The deadlock is operated by the cylinder only.
To secure this door overnight, it must be locked manually. Once the deadlock is released to open the door the customer will either push or pull.
- Designed for installation where reliability, stability and strength of the door are vital.
- Typical applications include the main entrance to small commercial or public buildings or a side entrance to larger facilities.
- The door is made of thermally broken aluminium profiles and can be divided by one or more glazing bars, with the resulting apertures glazed or panelled in aluminium.
- The door can be installed as either single or double leafed and outward or inward opening.
- Available with 24mm double or 48mm triple glazing.
- The door can be coupled with VELFAC windows to create glazed entrance screens for receptions or atria.
Standard fittings
SINGLE DOORS
Primary lock:
DOUBLE DOORS
As above plus:
Primary lock:
- Deadlock & roller latch (1050mm from bottom thresh to C/L handle)
- 300mm cranked pull handles, stainless steel, internally & externally.
- Europrofile cylinder, keyed external, thumb turn internal.
- Slimline barrel hinges, natural anodised.
- TS83 Door closer with hold open facility (natural anodised).
DOUBLE DOORS
As above plus:
- Rebated meeting style.
- Flushbolt at the slave leaf.
Alternative fittings
- Three part claw hinge.
- Claw hinge with anti-finger trap gasket.
- 2-leaf door with vertical brush seal (requires deadlock with hook bolt).
- The door can be supplied with different handles and lock boxes than the above mentionned. For further information please call VELFAC.
Show all

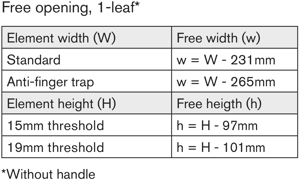

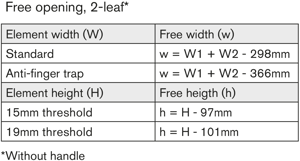

Min./max. & free opening sizes - door type 1+2+3+4
Show more

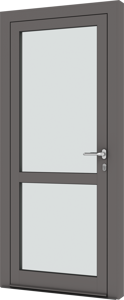

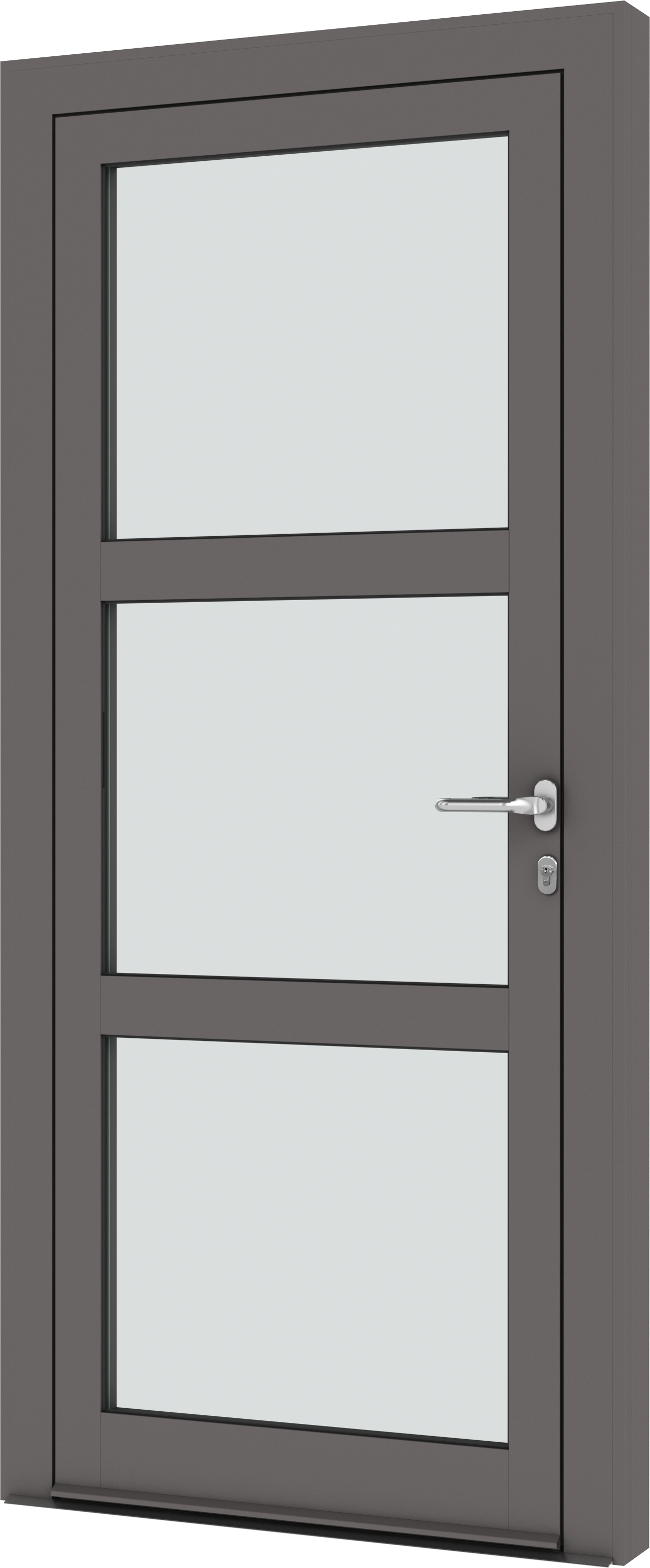

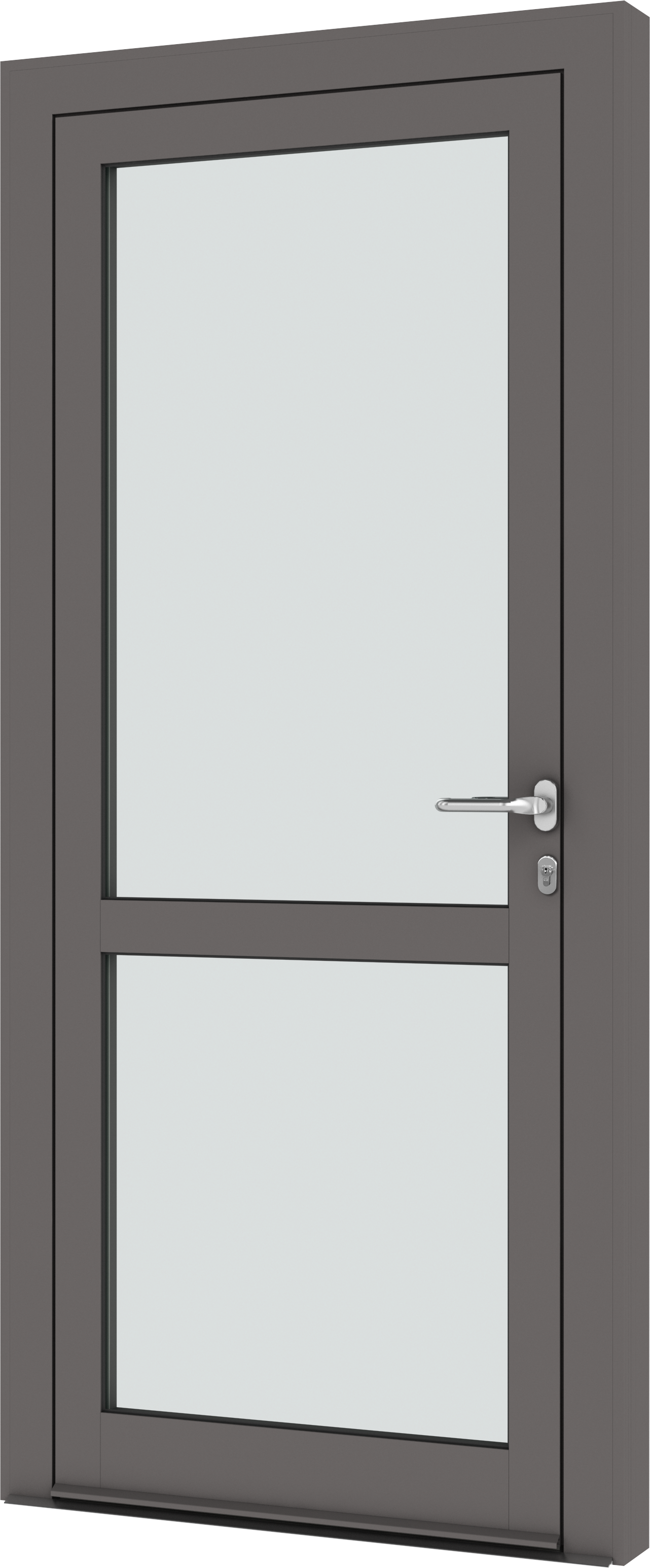

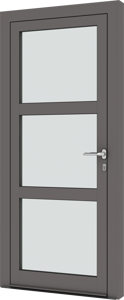

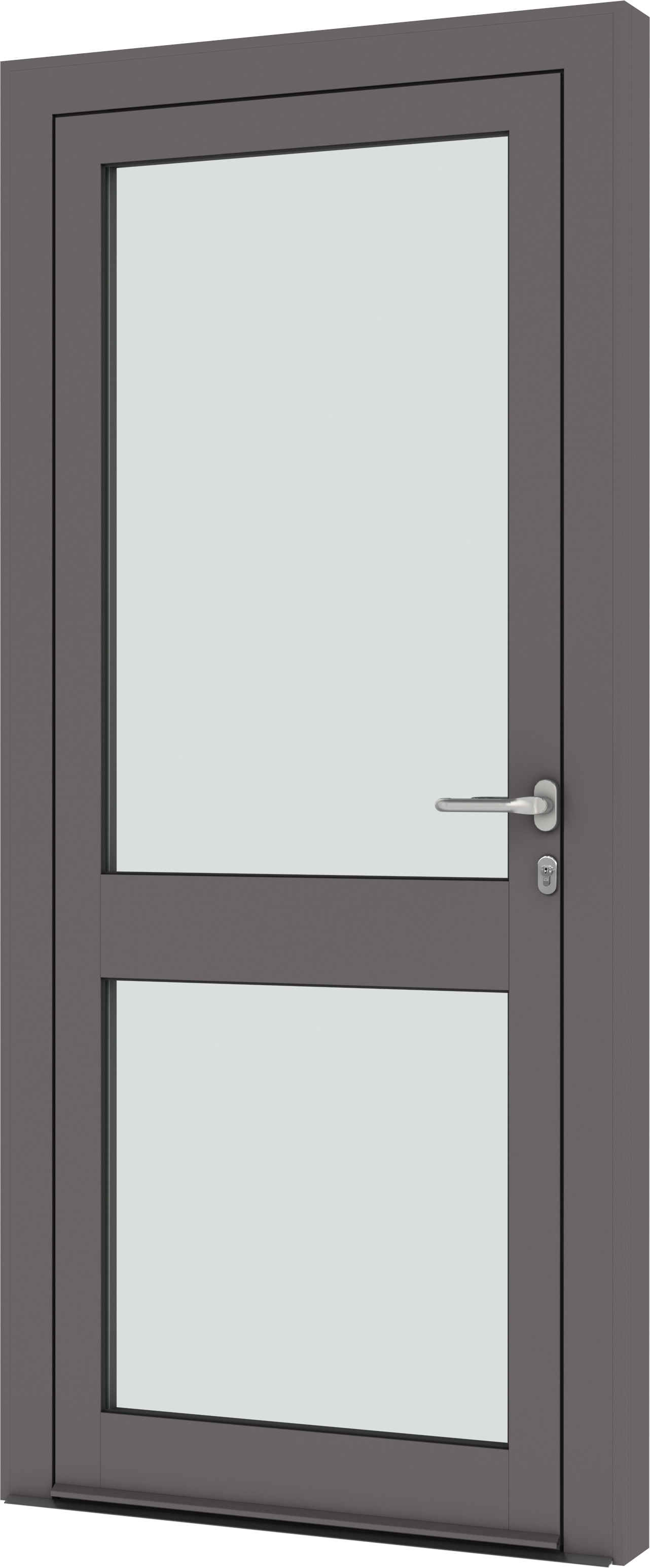

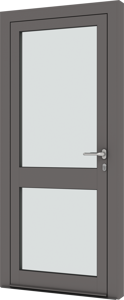

Glazing bar options
Show more
Standard fittings
Cranked pull handle
Europrofile cylinder
Door closer
Barrel hinges
Flushbolt to operate the slave leaf in 2-leaf doors
Options & Accessories
Circular pull handle
Full height pull handle
Knob handle
Claw hinges with/without security adaptor
Barrel hinges with security adaptor
Letter plate
