Drawings
System drawings
Here you will find VELFAC Classic wood door system drawings.
The drawings can be downloaded as DWG or PDF files and are available free of charge when used in specifying VELFAC windows.
The drawings can be downloaded as DWG or PDF files and are available free of charge when used in specifying VELFAC windows.

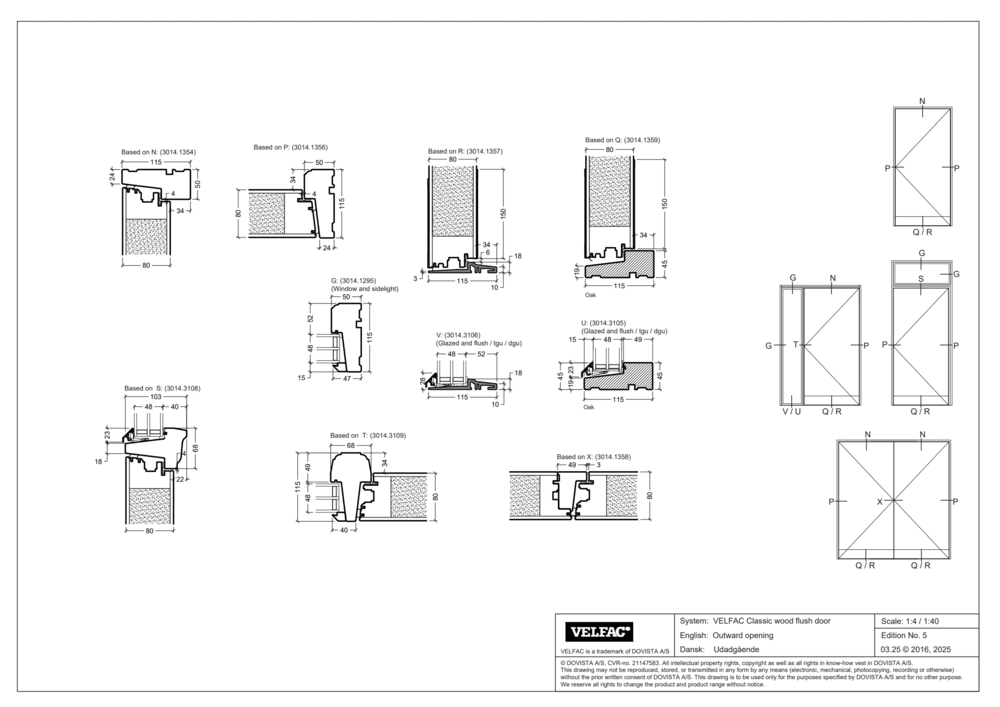

Flush and glazed entrance and patio doors
Grooves, rebates and packers
Coupling details
System details can be downloaded as DWG or PDF files.
VELFAC system details are available free of charge when used in specifying VELFAC windows.
VELFAC system details are available free of charge when used in specifying VELFAC windows.
VELFAC Classic wood windows - VELFAC Classic wood entrance doors
Outward opening VELFAC Classic wood/aluminium doors (Commercial projects)
Below you will find structural interface drawings for Commercial projects.
Please follow the links below to the drawings as DWG and PDF.
The drawings are structured after outer skin.
Please follow the links below to the drawings as DWG and PDF.
The drawings are structured after outer skin.
The structural interface drawings feature VELFAC Ribo wood/aluminium, but VELFAC Classic wood/aluminium and VELFAC Classic wood are installed according to the same methods.
Brick as outer skin of structure
Insulated Render as outer skin of structure
Rendered Block as outer skin of structure
Timber as outer skin of structure
Threshold Details
Coping Interface details
Inward opening VELFAC Classic wood/aluminium doors (Commercial projects)
Below you will find structural interface drawings for Commercial projects.
Please follow the links below to the drawings as DWG and PDF.
The drawings are structured after outer skin.
Please follow the links below to the drawings as DWG and PDF.
The drawings are structured after outer skin.
The structural interface drawings feature VELFAC Ribo wood/aluminium, but VELFAC Classic wood/aluminium and VELFAC Classic wood are installed according to the same methods.
Brick as outer skin of structure
Insulated Render as outer skin of structure
Rendered Block as outer skin of structure
Timber as outer skin of structure
Threshold Details
Coping Interface details
Outward opening VELFAC Classic doors (Housebuilder projects)
Below you will find structural interface drawings for Housebuilding projects.
Please follow the links below to the drawings as DWG and PDF.
The drawings are structured after outer skin.
Please follow the links below to the drawings as DWG and PDF.
The drawings are structured after outer skin.
The structural interface drawings feature VELFAC Ribo wood/aluminium.
VELFAC Classic is installed according to the same methods.
VELFAC Classic is installed according to the same methods.

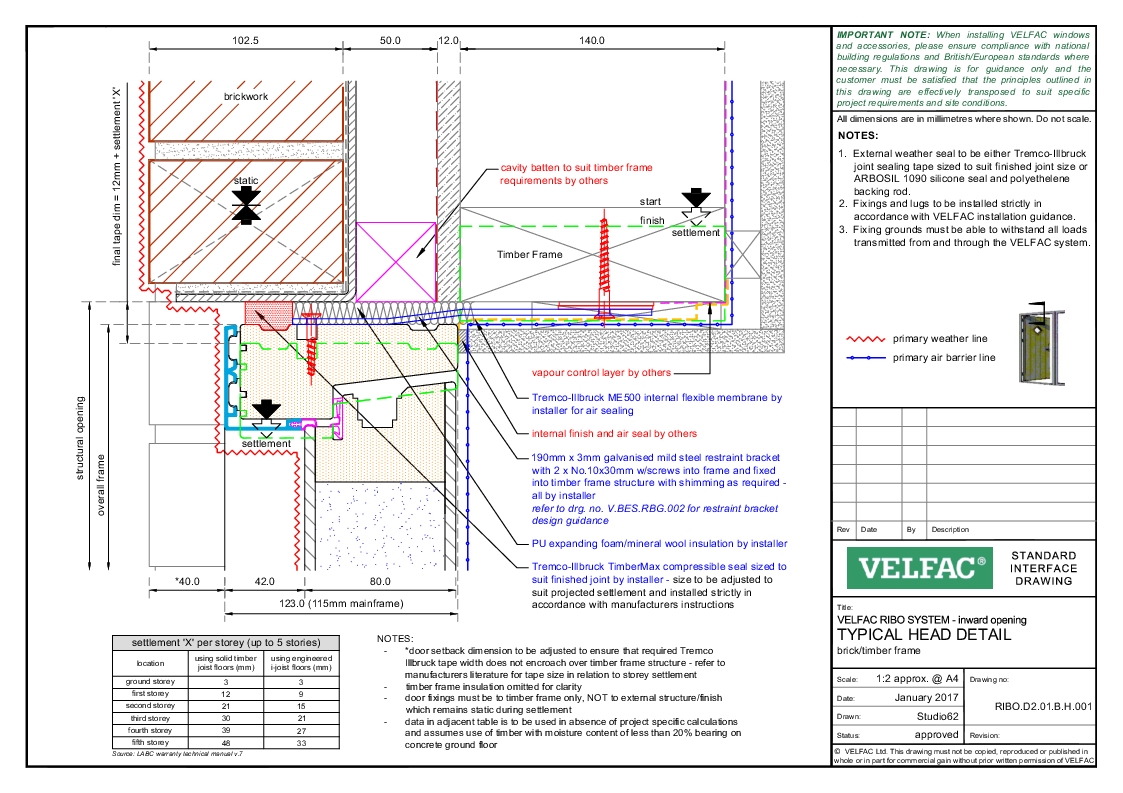

Brick as outer skin of structure

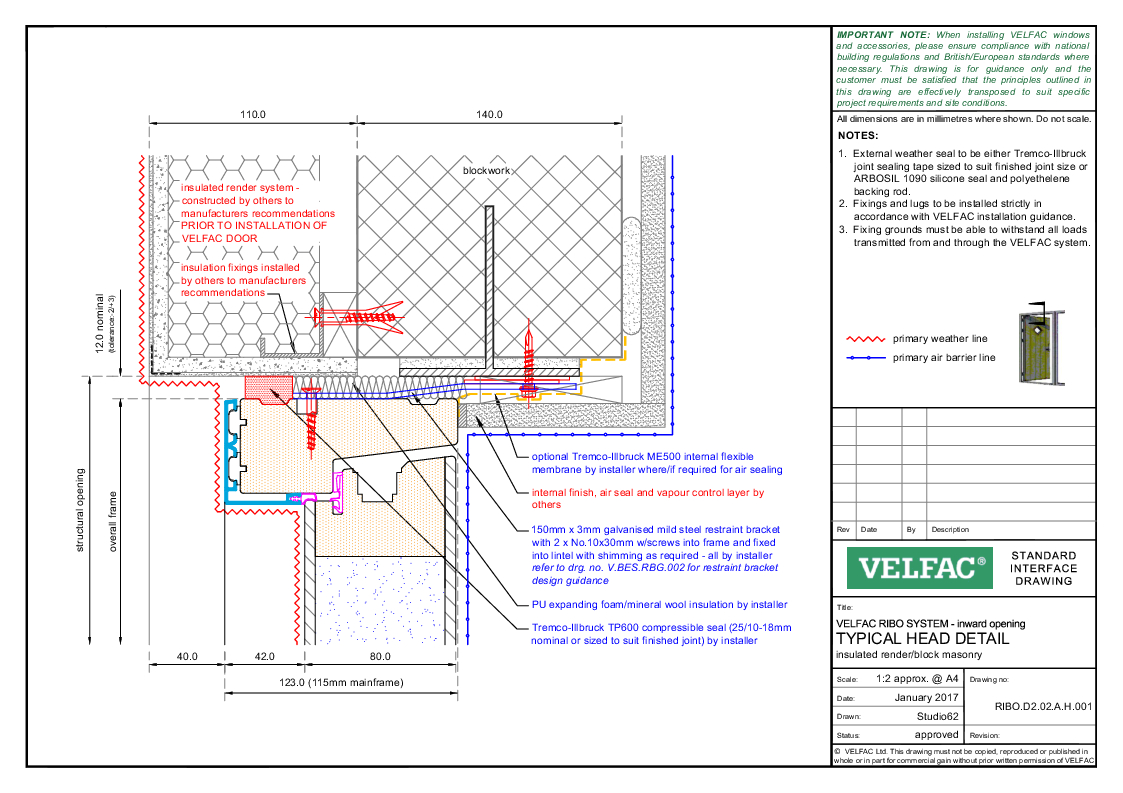

Insulated Render as outer skin of structure

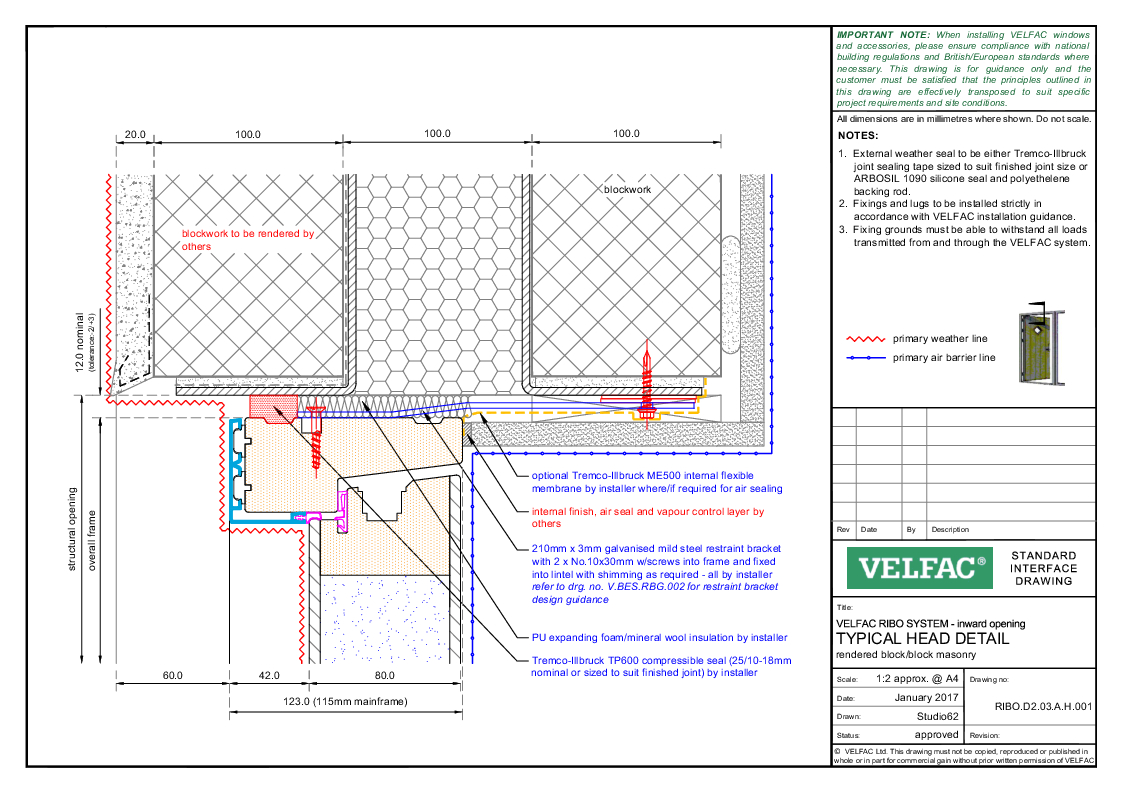

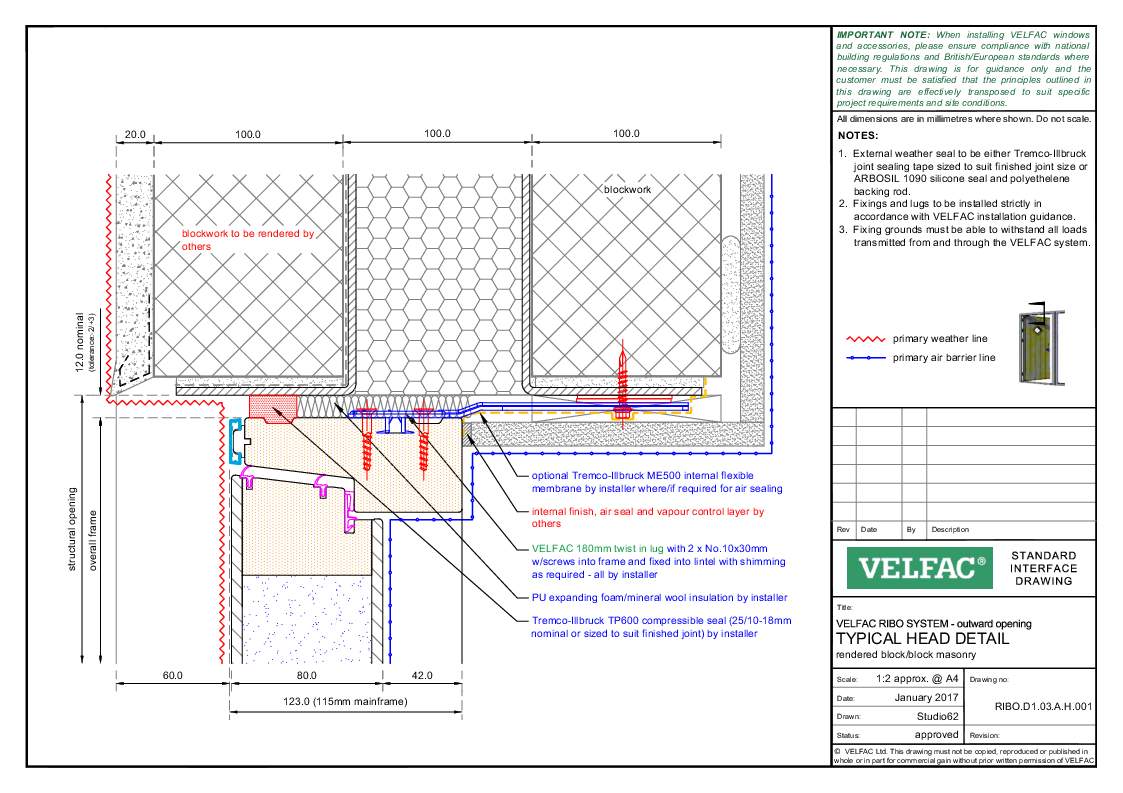

Rendered Block as outer skin of structure

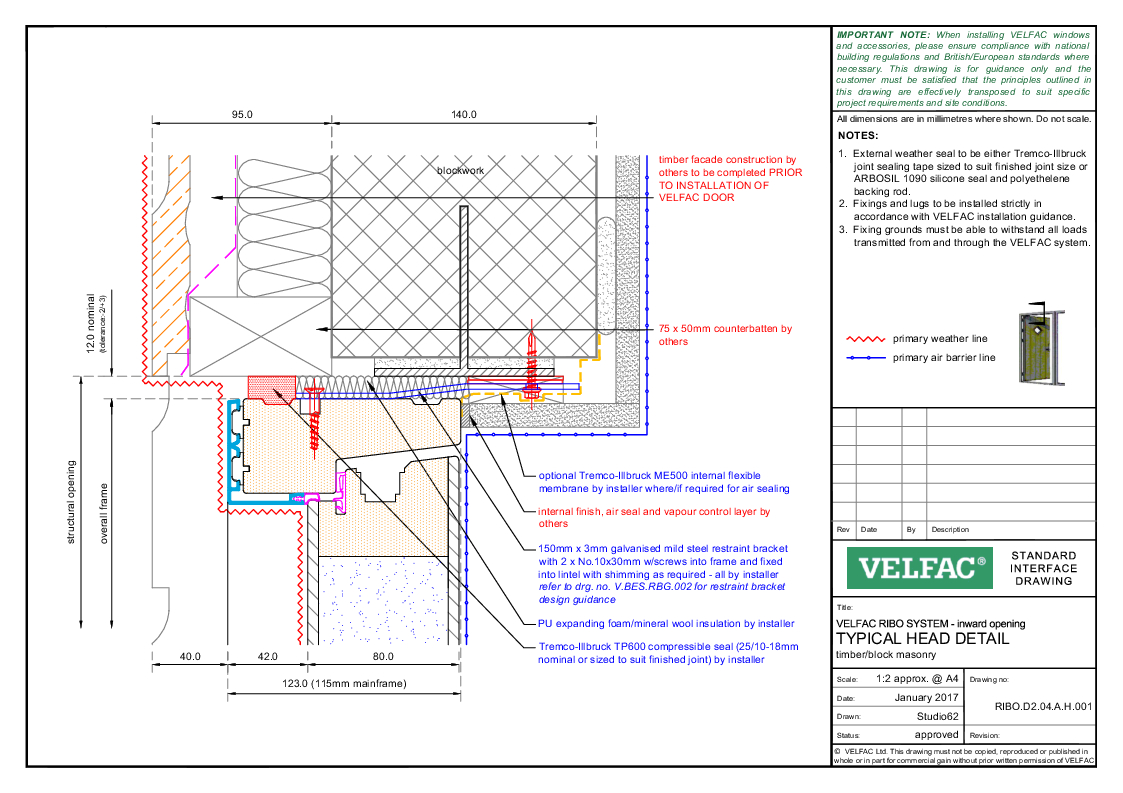

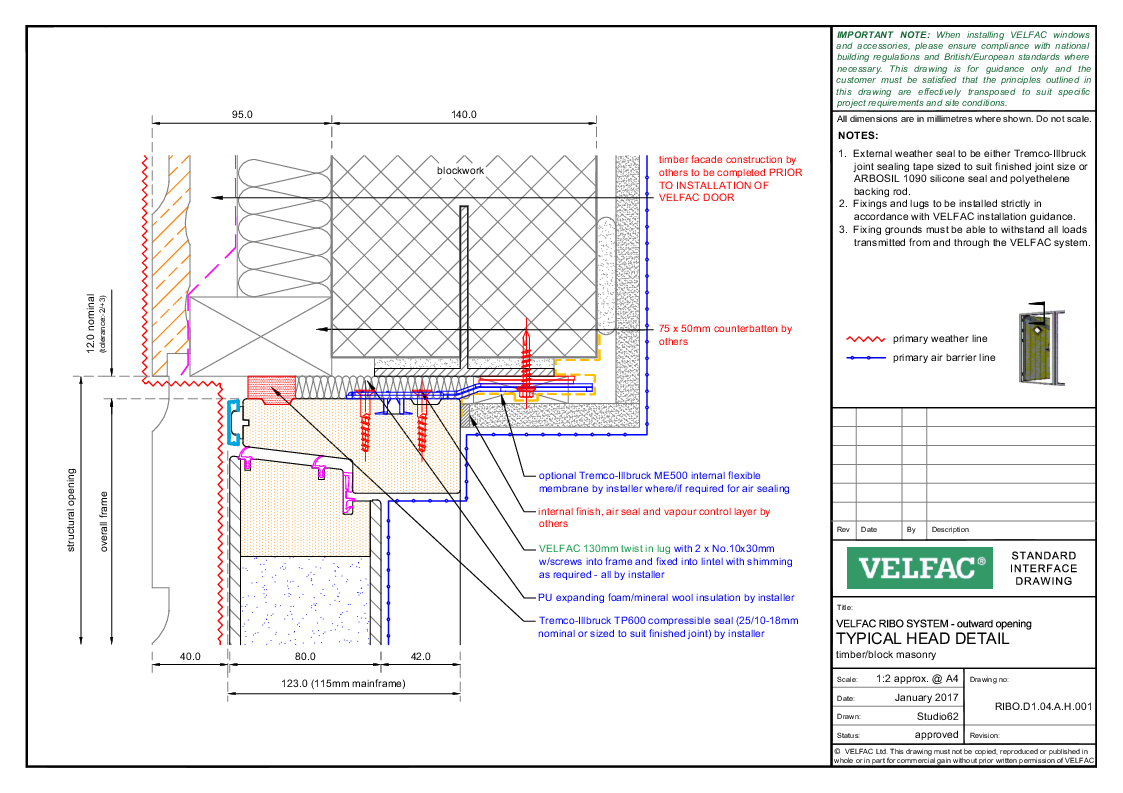

Timber as outer skin of structure

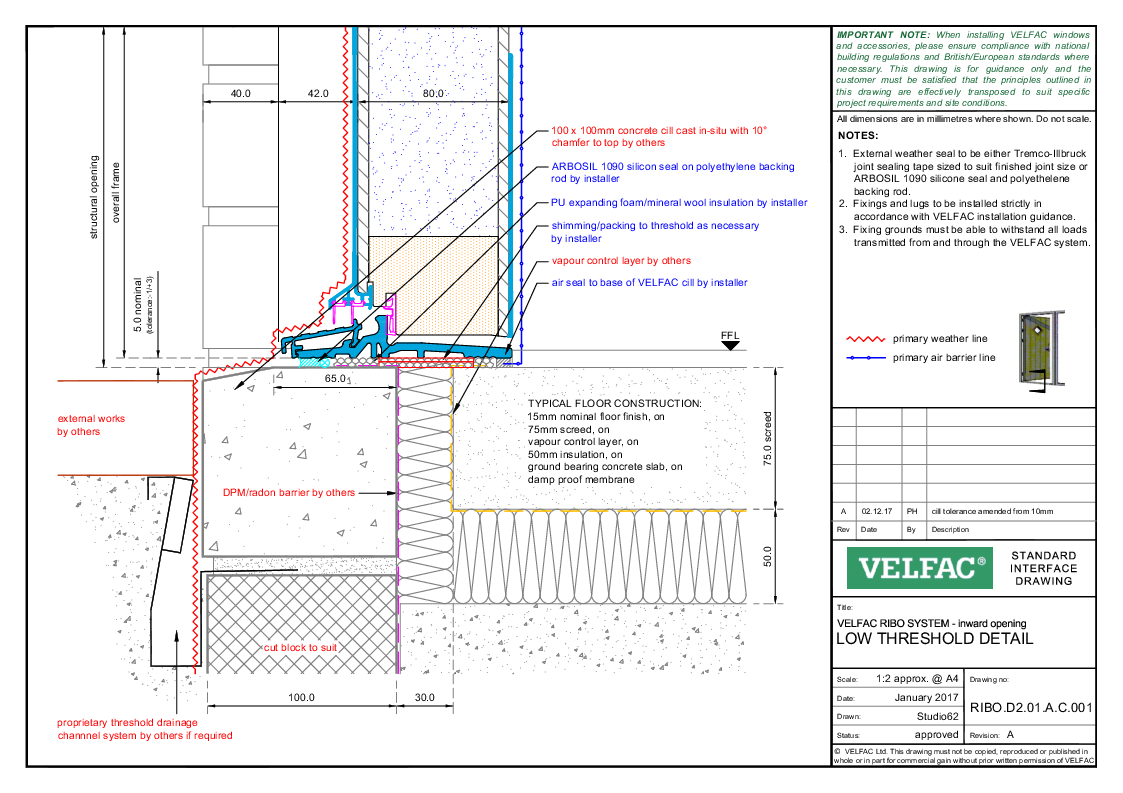

Threshold Details
Coping Interface details
Inward opening VELFAC Classic doors (Housebuilder projects)
Below you will find structural interface drawings for Housebuilding projects.
Please follow the links below to the drawings as DWG and PDF.
The drawings are structured after outer skin.
Please follow the links below to the drawings as DWG and PDF.
The drawings are structured after outer skin.
The structural interface drawings feature VELFAC Ribo wood/aluminium.
VELFAC Classic is installed according to the same methods.
VELFAC Classic is installed according to the same methods.
Brick as outer skin of structure
Insulated Render as outer skin of structure
Rendered Block as outer skin of structure
Timber as outer skin of structure
Threshold Details
Coping Interface details
