VELFAC Ribo wood/aluminium - Outward opening glazed entrance door, 1-leaf
- Outward opening 1-leaf glazed entrance door.
- Glazed entrance doors provide maximum daylight.
- Also available as double leaf or single leaf with fixed sidelight and/or fan light (refer to these for more information).
- Aluminium externally, pine wood internally.
- Threshold: 18mm, 22.5mm or 45mm.
- Design: Can be divided by glazing bars with the resulting apertures glazed or panelled.
- Available with 32mm double or 52mm triple glazed units.
Standard fittings
- Espagnolette system with three closing points.
- Lock-box with oval cylinder.
- Cylinder placed above the handle.
- Three ajustable hinges.
- A sash lift pulley wheel to support and assist the functionality of the sash, and which must be activated during installation of the door.
Threshold:
- 18mm threshold of HELO® composite material in a grey hardwearing surface finish (22.5mm in combination with 148mm frame) or
- 45mm threshold of hardwood (laquered oak).
Alternative fittings
- 180° hinges (allows for up to 50mm setback).
Not available with kick-plate.
Show all
Min./max. & free opening sizes - outward opening 1-leaf glazed door
Show more
Standard glazed doors and glazing bar configurations
Show more

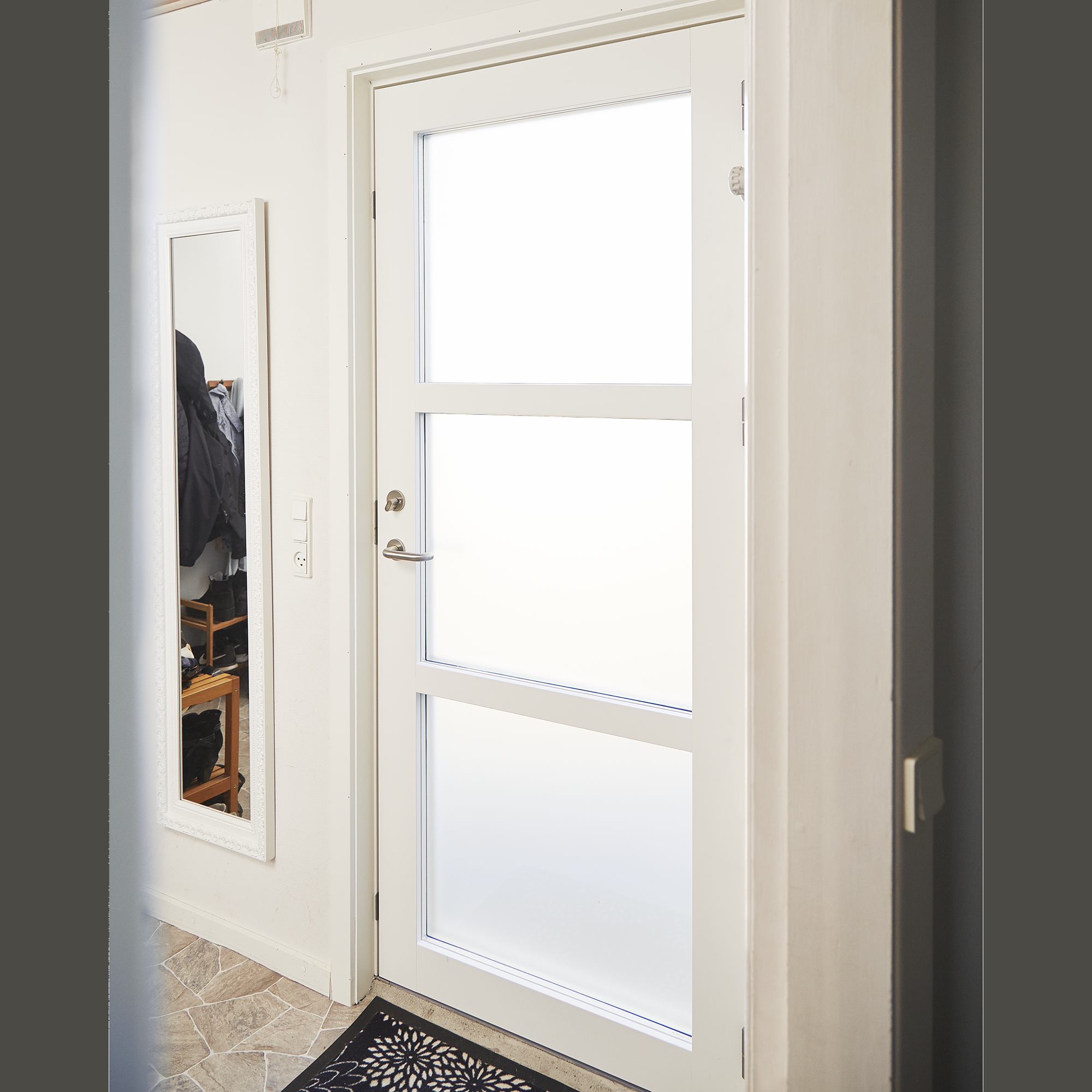

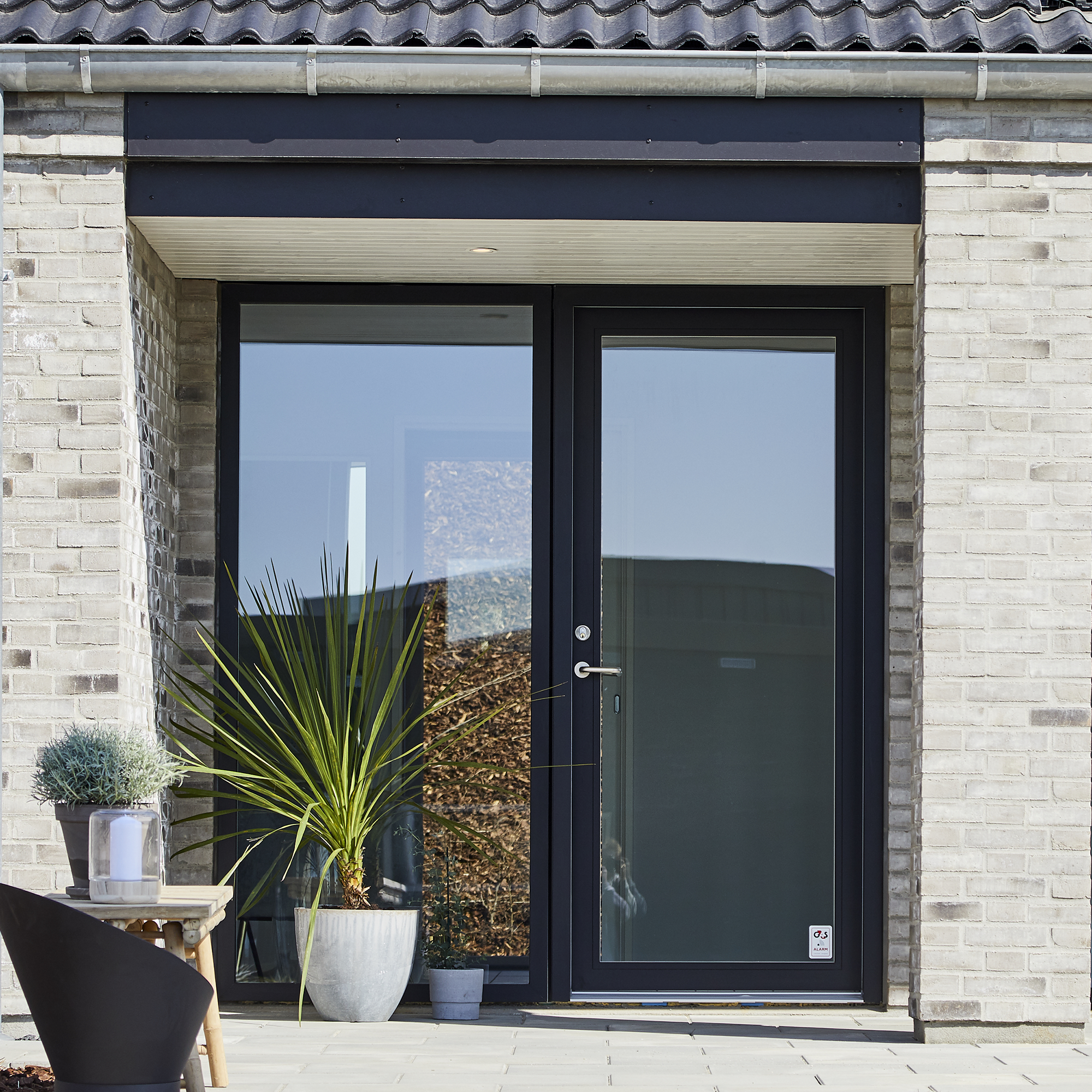

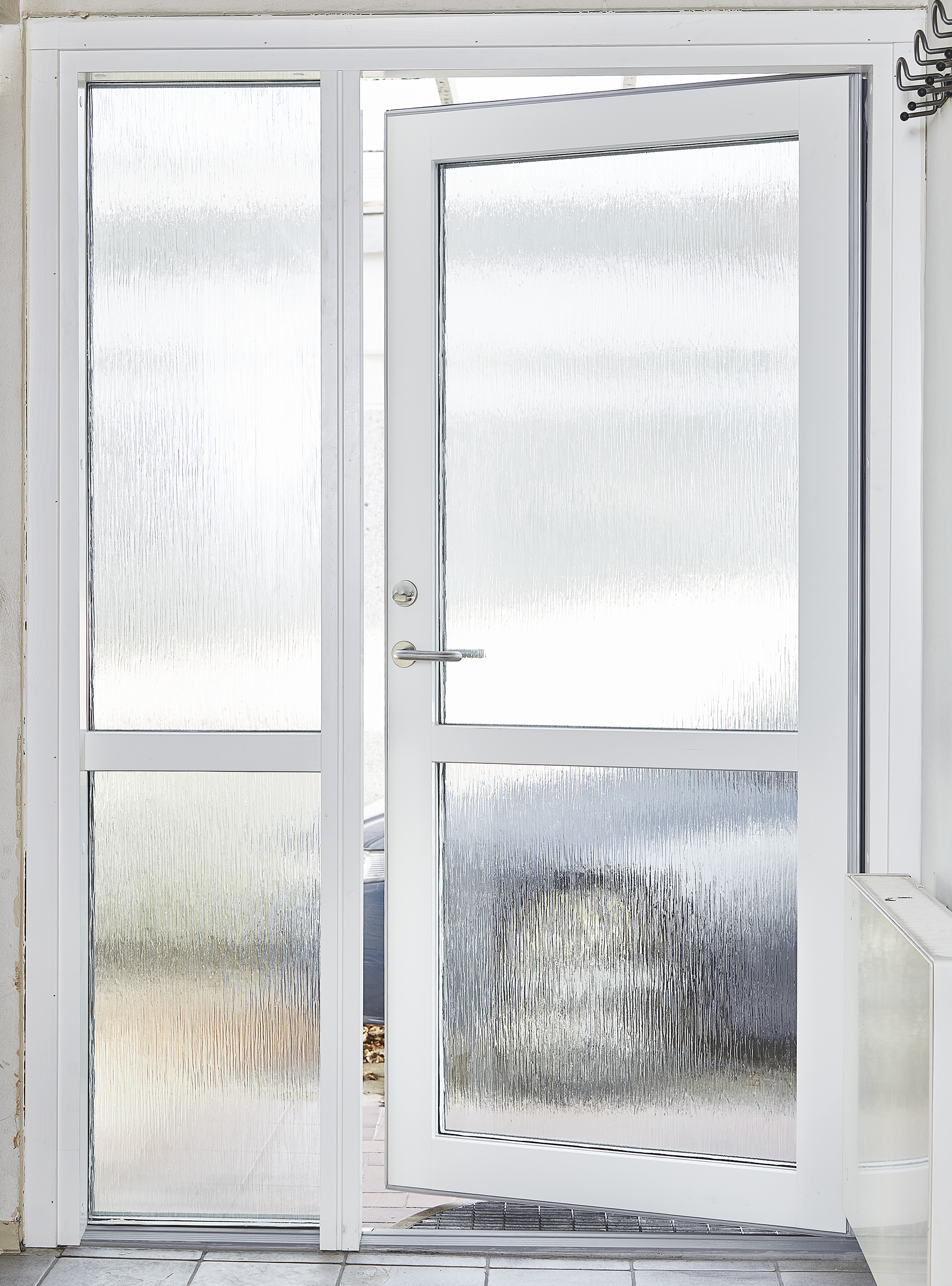

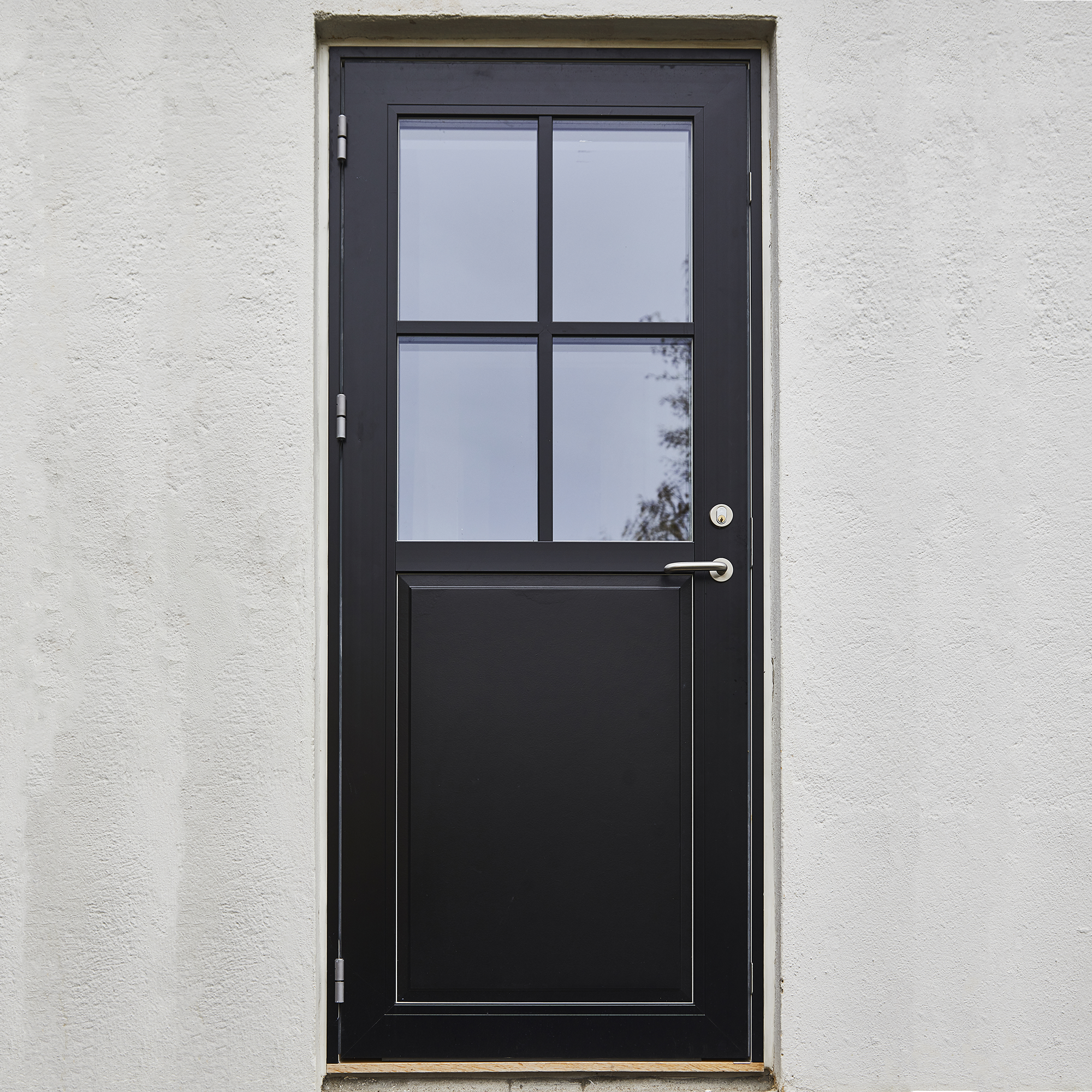

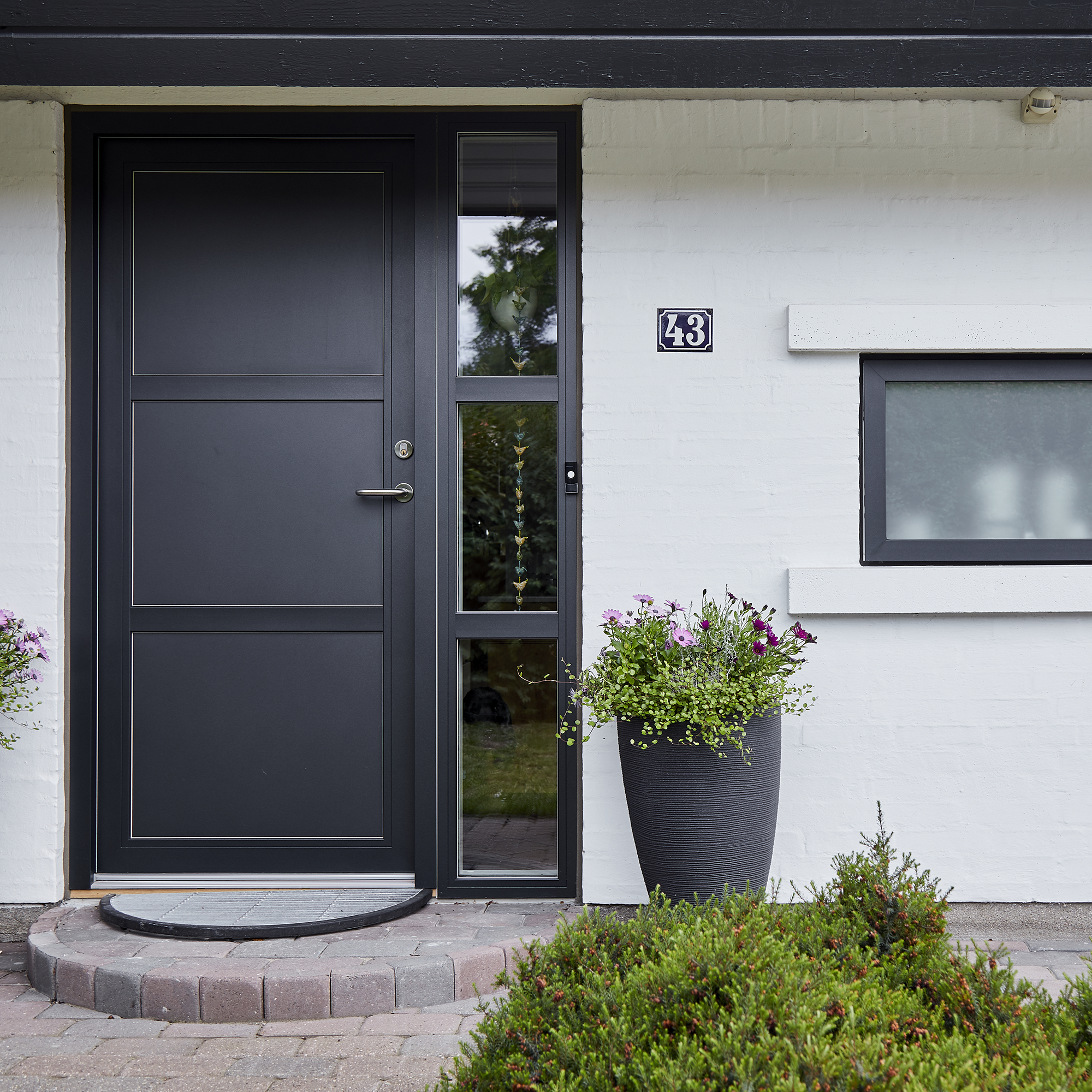

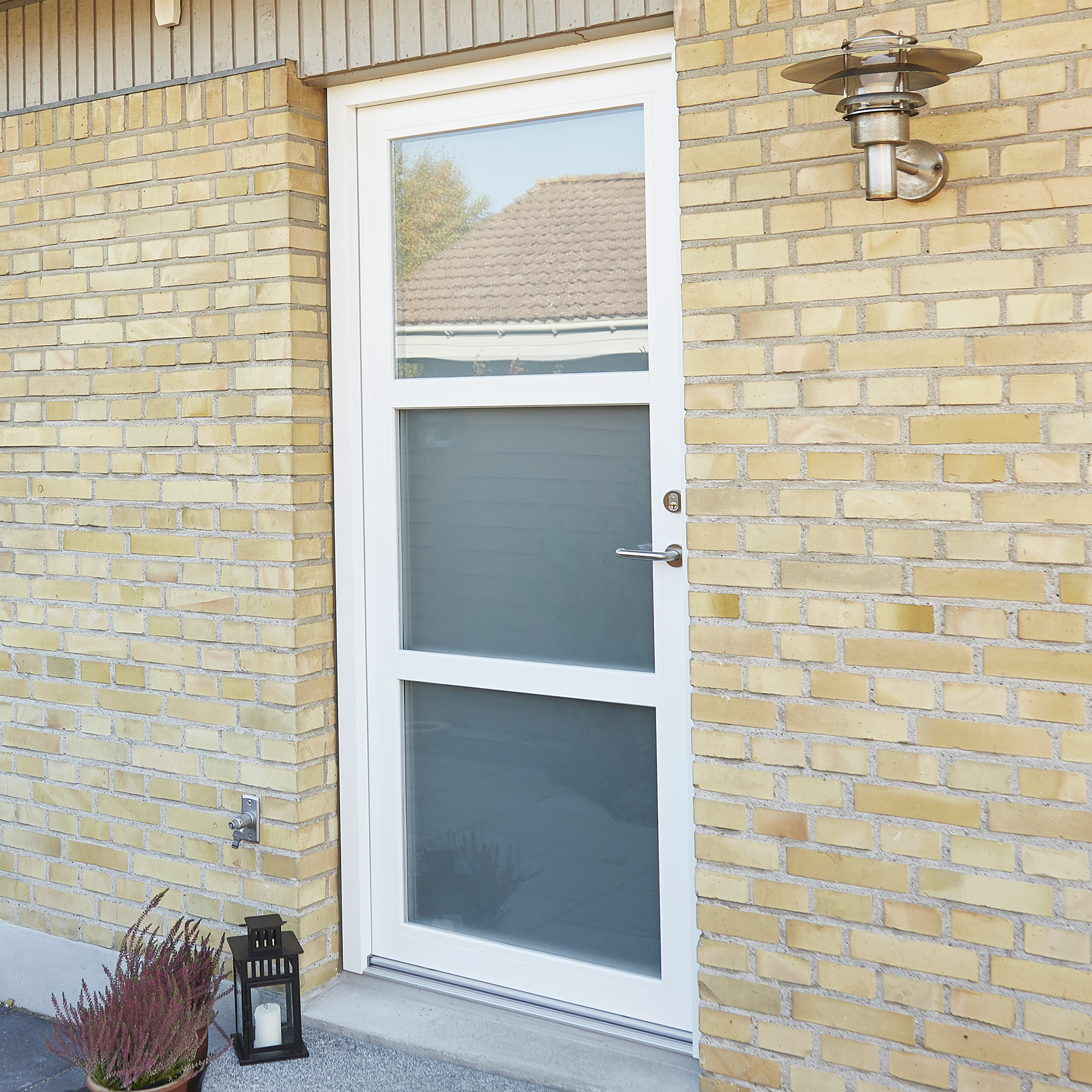

Examples of glazed entrance doors
Show more
Standard fittings
Standard hinge for doors
Options & Accessories
_crop.png?width=212&height=212)
Lever handle for entrance doors
180° hinge with larger set-back for outward opening doors
Click vent - entrance and patio doors
Door closer
_crop.png?width=212&height=212)
Letter plate
